TruCUT RDWorks System Bars Cut Preview and Cut Property (Part 5) System Bar Mini-Series

rdworks cut property preview

When you are using the System Bar you can quickly access the Cut Preview and Cut Properties.

These settings and features are great when you want more control over how the final cutting will behave.

This video is part of a Mini-Series.
Next video covers System Bar Group & UnGroup.
Previous video covered System Bar Navigation.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

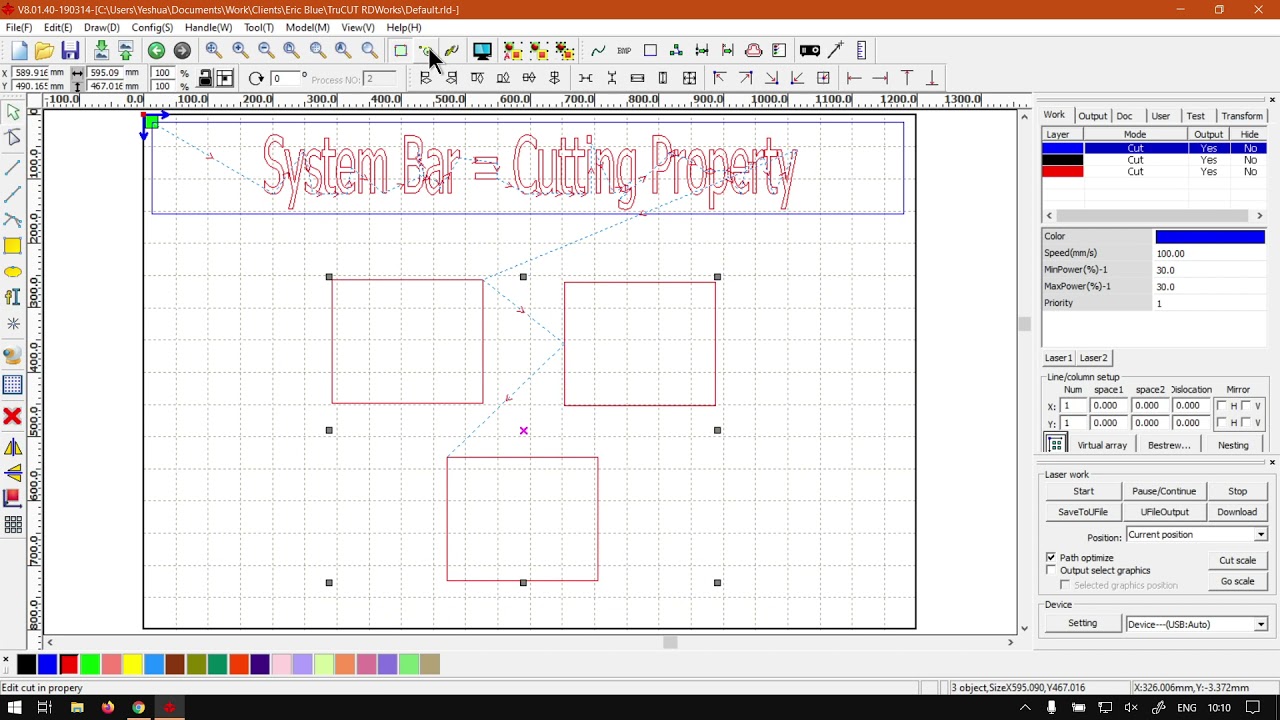

How are you guys in today's video? We're gonna be looking at the cutting property icons. Three of them, um, located on your system bar, and that will be for to cut already works. But before that, let's have a quick intro first. Mm, Yeah. Mm. So today's video can be found on softwaretraining.co.za c o dot z A. We make short and easy to watch the problem solving videos, and we also have daily updates. Otherwise, we're back in the programme here. Now, just a quick reminder. This is a very serious on the system bar, which is this bar located here. And I will also leave relevant links in the description So you guys can actually follow it along now when it comes to the cutting property or properties. Um, So there's three different, uh, options to look at. If we go here and I'm standing next to the navigation icons, we've got these three. Keep in mind, the middle one will only be active if you actually have something selected shape or so forth. So let's start with the first one. The first one is show path. So if we click this, we can kind of see, every year the path which direction it's gonna go So it's gonna start with this top shape. Then it's gonna go to text or start with s shows you when s will start and then from there when it finishes or go to the Y and so forth likewise with these when it's finally done with a wife from property, what goes through your first cube? As you can see, we could see arrows of the direction it's going to be going. So this is nice to preview your cutting order. You can say in anyways, the way it's gonna go And then if we have to have something selected and the next one will become active, which will be our edit cut in properly now And this one, we can set our cut in and cut out um uh, features. And then we also have a few at the bottom, which we'll go into more depth future videos. And next to that, we've got the actual cut or edit cut property. So if we open this, you guys will notice, Uh, we've got a nice big okay, it's not that big, but we've got a nice big ish, uh, preview bar preview panel. So once again, we can see the cut order. But now what you actually do is you can reverse orders, re change, um, where it's gonna start cutting. So this is a great place to add it your actual cutting workflow. And we've got some few different options here we can look at also in the future. Otherwise, that is it on the cutting icons located on your system bar. Um, yeah, it's rather simple, um, to locate. And then if we head here to softwaretraining.co.za Seattle today, you guys will notice we've got a variety of different software to recover. And also you can isolate your search on the top of right. If you do not, however, find what you're looking forward just to hear reports the training video, Then we will make those videos for you. But otherwise thanks, guys for watching and cheers
