TruCUT RDWorks Enabling the LGP Blank Option (Part 21) LGP Design Videos Mini-Series

rdworks lgp blank option

The LGP Blank option is great when you are working with unique shapes that as cutouts within it.

With this features options available you can fine tune the LPG designs cutout and overlaps of those cutouts.

This video is part of a Mini-Series.
Next video covers LGP – Cut and Engrave Output.
Previous video covered LGP – Variable Power Options.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

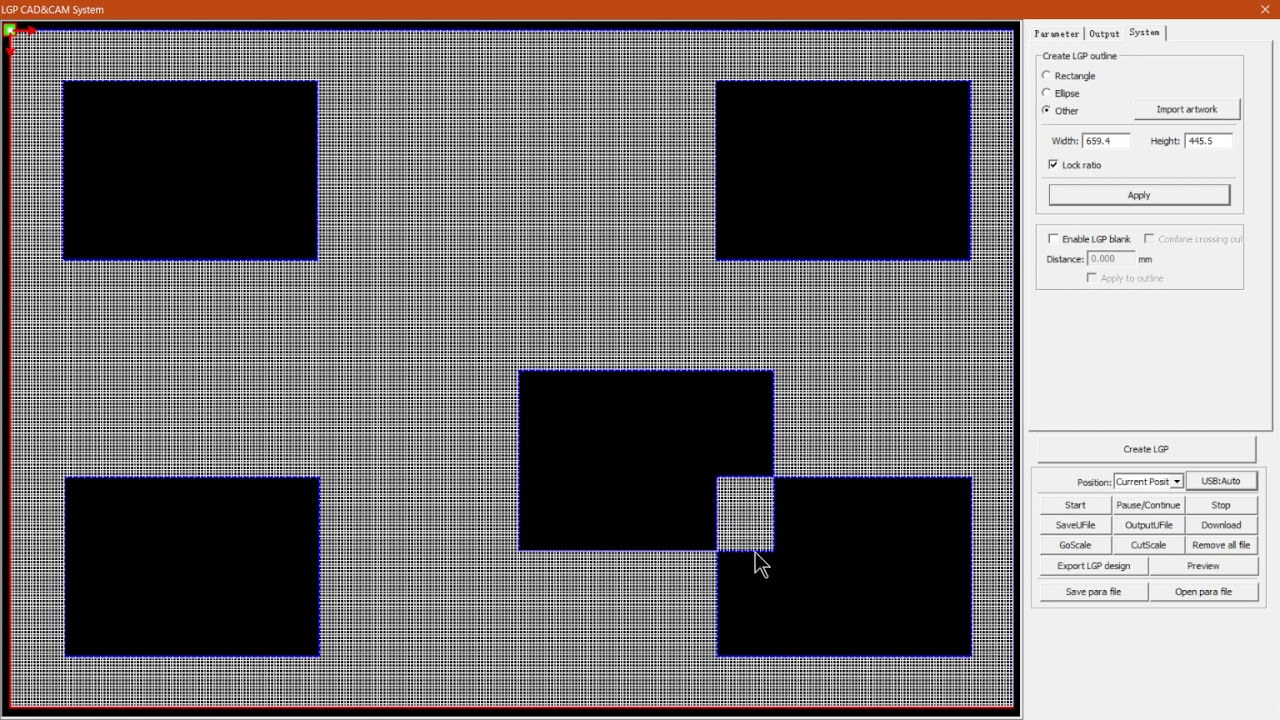

Hi guys. In today's video, we're gonna be looking at the enable LGBT blank option that's located within your l G P design feature. But before that, let's have a quick intro first. Yeah. Mm. So today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise, back on the programme here. Now, just a quick reminder. This is a miniseries on the L. G. P design feature, and I will also leave relevant links in the description so you guys can actually follow it along now when it comes to the enable L g p blank option. This is great. If you want to set the spacing and so forth of your actual blank areas within your design or show so within the LDP shape that you're busy. So we're here to the future. We go to systems on third tab on top here. Then what I'm gonna do is I'm gonna go to when outline, I'm gonna create other import and then locate a unique shape. We've got this rectangle with five rectangles inside and two of them over the lap. I'm gonna say apply or open first. And then I'm gonna set my, uh, type to grit just for, uh, to make stuff more simple while we work with it. Click, apply. And then, as we can see, we've got grid with intersections crossing minuscule this down a bit. So it's not too busy. Make us about 200. And then now we've got a grid and the two degrees it's crosses and you'll see where it crosses. We've got another grid. So now when we enable the L. G b r g p blank and we say apply, you will notice nothing happens. And that is because our distance is currently set to zero. So let us try. Increase this distance quick. So we've got to click, apply, and then you can see. Now we've got to relive into the scale a to spice distance all around outline or around our gaps. I've personally not tried this to a negative yet, as you see, if this works okay, Yeah, So there we go. So now you can make it to the inside, to the outside, so negative inside positive outside. And then I'm just gonna keep this to for now. But you can also do this. You can go to apply to outline. So what this will do is if we enable it, it will only affect the outline. So as we can see here, the normal grid still runs through the same place. But then the actual outline. Now we can take it to the inside. Then. I've also not tried doing this to the negative. See if anything happens. No. Yeah. No, The outline is actually going to the insights. I don't know why you do that, but yeah, you can do it if you wanted to. Then, uh, the last option knew that we've got is combined crossing outlines. I think it's supposed to say, um but just keep in mind, you need to disable this in order for that to work. So apply to outline. You should be disabled. Then if I click, apply now. Then anyway, where there is Mm. Let's try this again. And it's going to set this value maybe a bit bigger. It's good to It's not enabled. We'll do a lot in any case. So now, whether it's enabled click apply anywhere where the outlines crosses, you'll see it, Um combines him. So now there is no longer a light cut every year between these crossings. So that is what the third option does, which is pretty handy. So just quick recap so we can set the distance, the inside or outside, we can say just the outline. Or we could combine any areas without line crosses where it will basically hide any cross words. But yeah, that is it on the enabled L g b L g p my apologies, blank option. And then if we head here to softwaretraining.co.za c o dot z, you guys will notice we've got a variety of different software to recover, and also you can isolate your search on the top of right. If you do not, however, find the training videos you're looking for just a year. Request the training video, fill in the uniform. Then we'll do our best to try and make that for you. But otherwise thanks, guys for watching and cheers
