SAi FlexiSTARTER 19 Set the Panel Modes (Part 14) Cutting and Plotting Mini-Series

flexistarter cut plot panel mode

When using the Panel Mode within the Cut and Plot feature, you will be able to change the way Tile panels behave.

For the Panel Modes you have a few different option types to choose from, from horizontal and vertical behavior to all directions.

This video is part of a Mini-Series.
Next video covers Options Tab Send all Colors.
Previous video covered Panel Tab Tiling All Copies.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

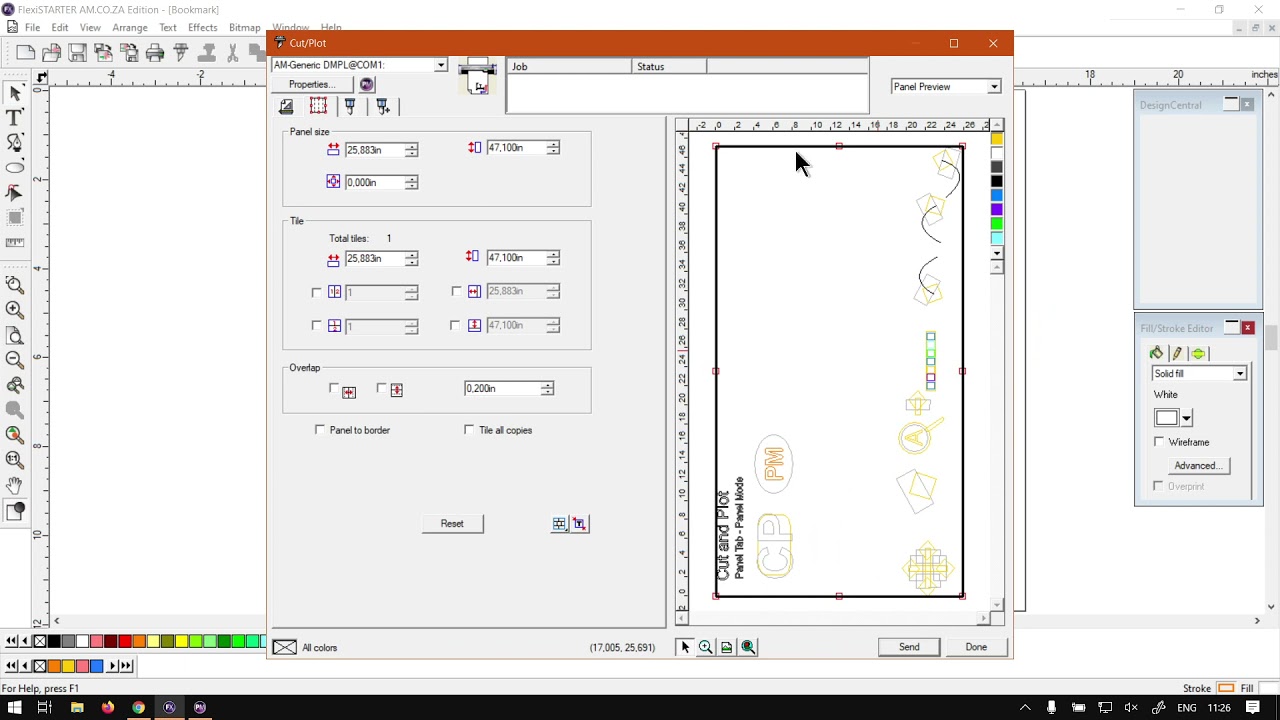

Hi, guys. In today's video flexi started, we're gonna be looking at the panel mode for the cut and plot feature. But before that, let's have a quick intro first. Mm. Uh, so today's video can be found on softwaretraining.co.za c o dot z A. We make sure it's easy to watch problem solving videos, and we also have daily updates otherwise back in the programme. So there's a continuation on the panel tab under the current plot feature. Like I mentioned the injured, we're gonna be looking at the panel mode today, So in order to locate it, we just want to open our garden plot feature and they never get to the second panel. So now I'm gonna add a quick You, uh, cut lines here so that we can see the difference. Like I mentioned before where I said, it's quite confusing how these, uh panels will be adjusted together as a group, but these ones in the region now there's actually a feature to change that. So what you want to do is you go to like I said to your panel tab, it's the second one, and then at the bottom here we've got this little feature panel mode. Now, if we click with the left mouse button and hold, we'll see a few different icons now, the top one all adjusted so that all the vertical lines worked as a group. The one under that will do it with all the horizontal lines working as a group. So if we do this, you'll see now another vertical ones are individuals where the horizontal will be working as a group. And then the last option we've got there is just all of them as a group. So now you're horizontal and vertical, so it's a vertical, and horizontal lines will work as a group. So now you can easily adjust them together. So this will obviously very the way you're gonna use it, depending on your actual design. So in my case, where I could get away with this, But I might wanna rather adjust it to the top one, because I mean my 30 clients, I don't need to worry about that. But my horizontal ones, however, could easily fit this one closing the tile and then maybe put these two in their own individual tiles. So, yeah, that is the panel mode under the current plot feature, The wise we had here to softwaretraining.co.za hat's here, that's today. You guys don't know that we've got a variety of different Softwares we do cover, and you can isolate your search on the top of right. If you do not, however, find the video looking forward just to hear. Request a training video. Then we will make that video for you. But otherwise thanks guys for watching and cheers.
