SAi FlexiSTARTER 19 Extra Cut Settings General Tab (Part 7) Cutting and Plotting Mini-Series

flexistarter cut extra settings

When it comes to the extra setting for the cut and plots general tab, there are a few great ones to choose from.

Under these extra setting we able to set things like the Centering, Rotation and also a few more other options that will help you get better results on the final cut.

This video is part of a Mini-Series.
Next video covers Cut & Plot Preview Panel.
Previous video covered General Tab Copies & Repeat.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

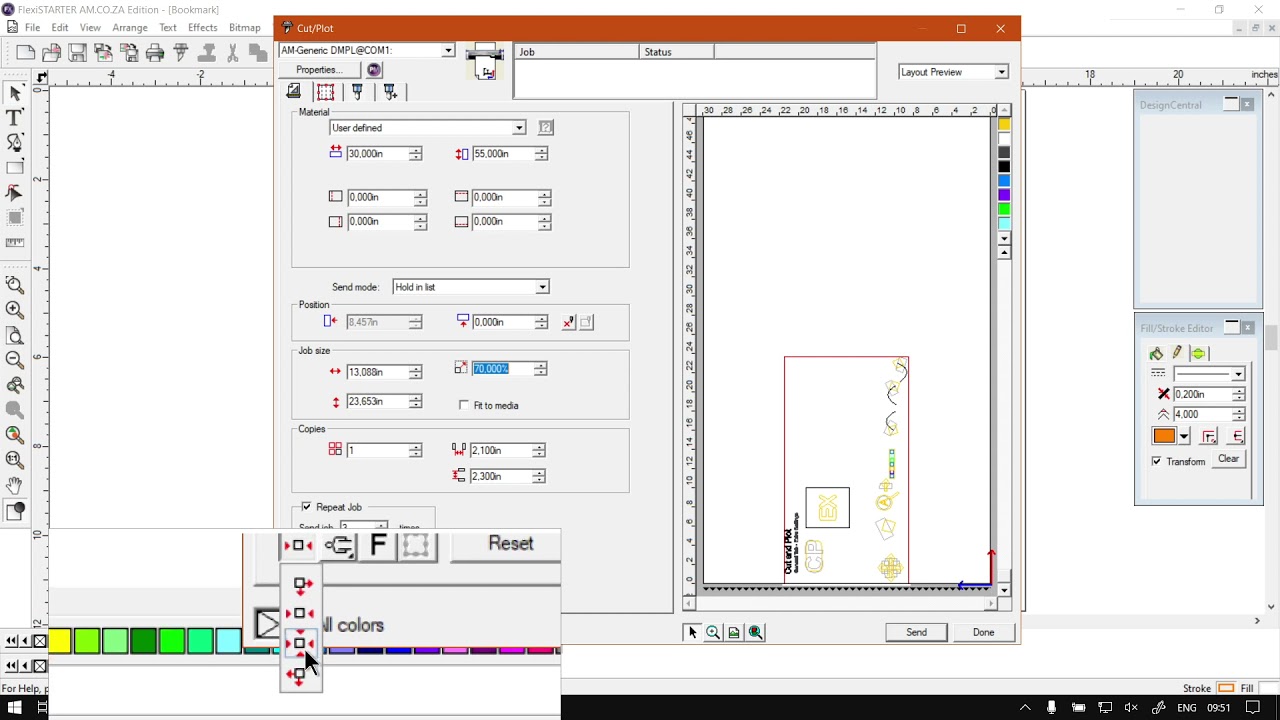

no guys in today's video Flexi starter. We're gonna be looking at the extra settings on the general tab, and this will be for the cut and plot feature. But before that, let's have a quick intro first. Yeah, Yeah. Mm. Uh, so today's video can be found on softwaretraining.co.za y. We make sure that easy to watch problem solving videos, and we also have a daily updates otherwise, back in the programme here. Now, if we carry on with this little mini serious, we're gonna look at which settings are left on the general tab. And then after that, we'll move to a new tab. So in order to open the settings, we wanna obviously go to our custom plot feature, which is located here under our standard to well, the one next to the print. You can simply click that icon or use control hours a shortcut key to open it now, without designing here, As you can see from previously, we've got so duplicates. So I'm just gonna remove all the duplicates and then yes, maybe scale is up a bit as well, so that we can just see the effects nicely. About 60 or shy 90%. No, it's too much. Try seven. Okay, so now, under the bottom years, all the extra settings under the gentle tap. So the first one is the alignment or the centering. So if we click on icons with the little black arrow like the same with these ones, you will notice that there's extra things under. So at the moment it is send it to bottom, right? If we have to go now, we can go to centre. Then we've got centre of the actual project and then at the bottom here, we've got bottom, um, left. So obviously you can also move this around, but simply just clicking okay with that enabled. Okay? It seemed like it constrains it to the to the actual area of said it too. I'm sure why it's doing that. Let's try this now I can see it in any case. So it seems like when it's under the but I'm right. It's stuck to that side. Just rather strange. I don't know what I would do. That And then the centre also you'll see if you move it, nothing happens. And then, um, the centre also gone, stranger. There seems to the left portion. So I would say, if you want to do manual changes, make sure this one is set to the top, which is basically the centre bottom, right? And then you can move it anywhere you want. But if you want a generic, uh, can I say positioning? That's similar throughout all the months. You can always use that. He's the one centre to the middle, and then you just print all your ones like that, you know, they're gonna be similar then next up here, we've got rotate. So if you were to, uh, you guys, you can actually see what's happening. So we've got a few different settings. We've got rotate, You can say clockwise, rotate counter clockwise, and then it's just like a 1 80 rotation. And then there's obviously the otherwise sucked, so you can simply just click, go through these ones and rotate the other. The design, as you would see fit obviously the bending on your design requirements as well. I like to leave mine on the default, which is actually second icons irritating at counterclockwise by someone. Um and then, um yeah, we've also got this mirror option, which we can mirror the entire design. I'm sure there's a reason for that. If you're not working with text may be just with designs. I would make more sense. Or if you're sticking something, maybe on the inside of a window you can always flip it. And then we've got selection only which, if I close here, so we select this control out to go back to it. Then when we click selection only, it will only be printing what we have selected, which can also be nice. If you wanna isolate pieces of your design, print them and separate phases or so forth. But yeah, that is it on our general tab. Um, next up where we are navigating through the next one, which is the panel tail. Otherwise, we had here to softwaretraining.co.za c o dot z A. You guys don't notice you've got a variety of different software to recover, and you can also isolate your search on the top of right. If you do not, however, find what you're looking for, Jessica here request a training video. Then we will make that video for you. But otherwise thanks, guys watching and cheers
