FabriCAM Software Practical Exercise Training (Part 12) Step by Step Video Tutorial

Now that we have covered all the different ways that you can navigate FabriCAMS three Dimensional workspace. what’s next?

Next up we will be covering a few practical exercises to get you more familiar with the different methods available.

This video is part of a Mini-Series.
Next video covers Practical Exercise Functions.
Previous video covered Navigation Mouse Rotate

.

Video Transcript

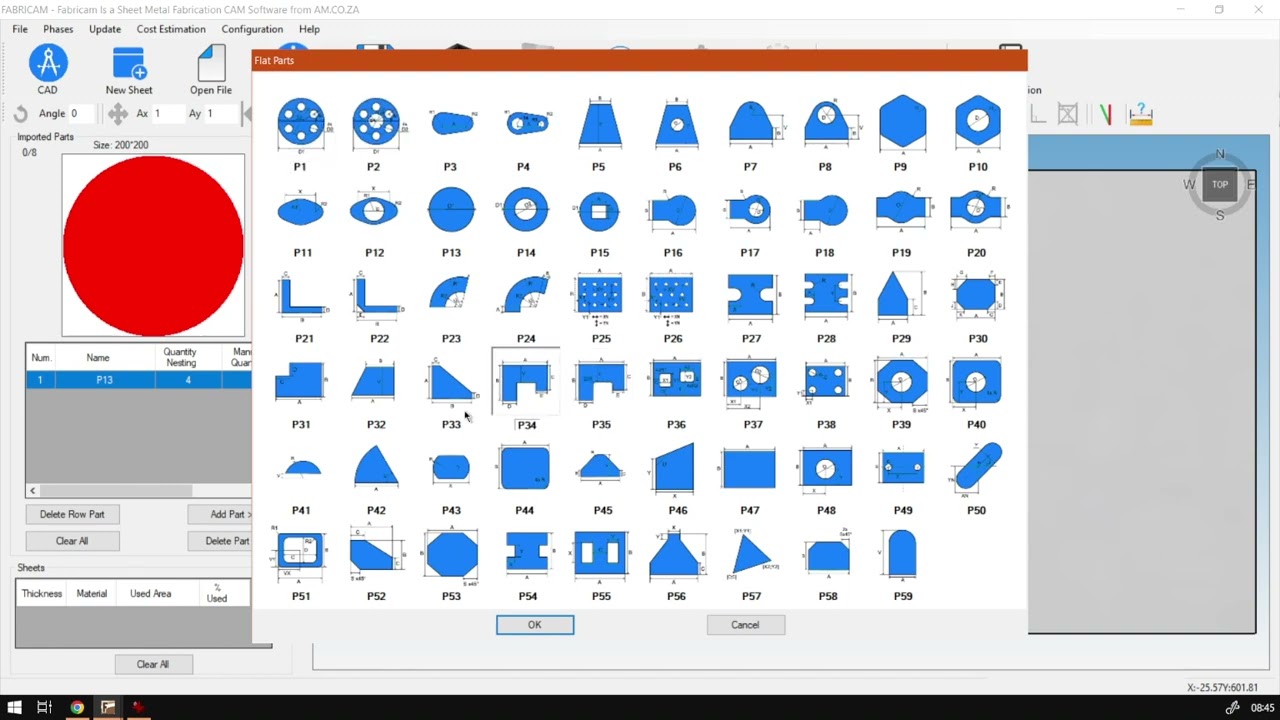

are you guys in today's video? We're going to be quickly setting up a practical work environment for our exercises. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure and easy to watch problem solving videos, and we also have daily updates. Otherwise, we go back to the tutorial. Yeah. Now, like I mentioned, this is going to be just a quick, uh, environment set up. We're gonna set it up. So, uh, programme is ready for our practical if we want to do. Now, if you're relatively comfortable with your navigating tools, whether it is the functions on top year, the widget or your mouth and you're welcome to skip these videos were just gonna be running through each one of these small practical, just to give you a little bit more exercise if you feel like you could do with some but that is no pressure. So if we start off, I'm gonna make a quick sheet. Then I'm gonna choose the 2000 by 1000. I'll just zoom in here so you guys can see that. So we're gonna grab this one and then at the bottom beam diameter. I'm just gonna leave this that one, because it's just all training stuff. Just so we have a basic sheet that fills screen. Next thing what I wanna do is I'm gonna go to flat parts on top here, click that. I'm just gonna add a basic we're gonna choose your p 13. Let's make the the amateur 1 200 millimetres and then say Okay, now, under its properties in that or adding properties, we're gonna just choose these two settings and change them both to four. So we've got quantity nesting manual quantity. I'm gonna go four and four books, four to Mattia, then say okay or add. Now we've got these ones over here. So next thing, let's just add another part, quick. We're gonna go flat parts again. Then I'm gonna add this p 53 and this was gonna make a bit bigger. So as you can see here A and B, I'm gonna make this about 4 to 500. So you get 500 and then s, which is these, um, slants. We're gonna make that 200. Let's say Okay, I'm gonna make one just for the middle. So add. And then now we've got that shape as well. So now the first thing I want to do is click on the P 13. So the circles were made. I'm gonna click Add part here at the bottom. I know we haven't run through properly how to do all of this, but we will know tutorial. So add part. And then we just started this into each corner. Uh, just so we have something two work with and then lastly, we click on p 30 53 gonna add this year straight in the middle. And then, yeah, now we have a nice work environment. We can play around with some checkpoints and then in the next video will be running through it just so you guys can get comfortable with using these tools more. But yeah, otherwise, before that, if we head here to softwaretraining.co.za z. You guys will notice we've got a variety of different Softwares we do cover. And you can also isolate your search on the top of right if you don't find the video. And also we do make custom videos so If you go request a training video and, uh, let's say there's not nothing for the programme you're looking for, that's honest list. Then just go request here and then we'll do our best to try and make that for you. But otherwise thanks guys, for watching until next one, which is.
