FabriCAM Software Mouse Rotate 3D Navigation (Part 11) Step by Step Video Tutorial

When it comes to the last one of the three key functions to navigate 3d space, we will be looking at Rotate.

Being able to Rotate the 3d space when navigating is by far the most difficult function to get the hang of.

This video is part of a Mini-Series.
Next video covers Practical Exercise Setup.
Previous video covered Navigation Mouse Pan.

Video Transcript

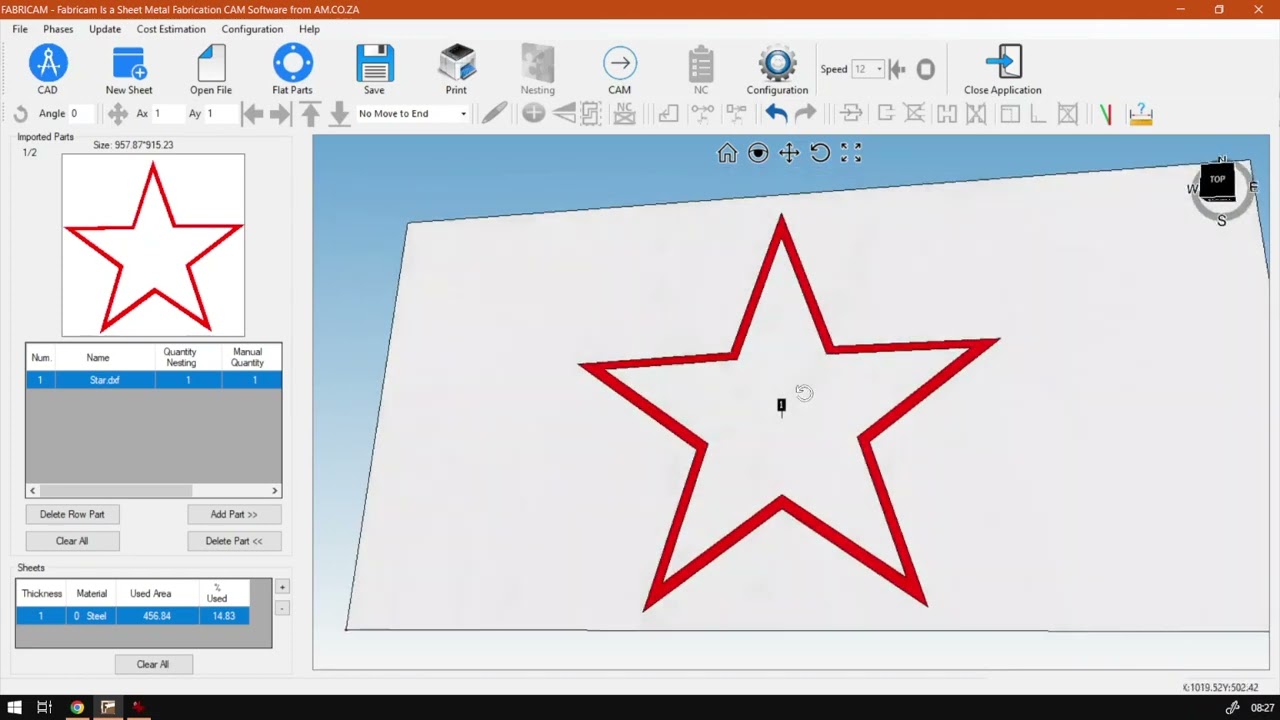

How are you guys? In today's video? We're gonna be looking at how to navigate your three D space with the mouse rotation. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure and easy to watch problem solving videos, and we also have daily updates. Otherwise, if we go back to the tutorial here now, this is the last video on three D navigation in the sense of controls. I'll try adding one or two practical at the back or after this, just so you guys can actually put into practise. Now, today we're gonna be looking at the mouse rotation. Like I mentioned, we really looked at rotating your, um three d space with your widget. I mean, your your your your widget here on the right and also the rotate function on top. Yeah. Now, in my personal opinion, the widget rotation is my favorite. Um, but if you're gonna be working with your mouse, then uh, yeah, it's good to keep them all relevant to the mouse, I would say now the mouse rotation is very similar to using the rotate widget. Oh, sorry. They rotate function here, so the controls are gonna be pretty similar. Okay, so they're gonna where you control it. So what you wanna do is you, like we've just covered. So we shift you can and your middle mouse button. If you hold it in, you can zoom in and out of control your pan. And now, so control and middle mouse button should I say, if you give them both in your pan and then if you just keep middle mouse button by itself, you will rotate. Now, this is very similar to most other Softwares. So, um, yeah, if you you want to get competent or using three space in Softwares. Perhaps some other CNC machines also have some nice previews, then this is a good yeah function to get used to. Now, Like I mentioned, my favourite is still this one because you can easily click here, rotate around and you know, Cuba is a reference. So it's easy to understand where you are in space, but this one does work the same as like I said, this one. So you can simply go in the corners. If you wanna rotate, then um, got it up and down, left and right and so forth. But yeah, that is it on the rotation with the mouse. Like I said, Um, yeah, it is similar to this one. The actual function. And yeah, now you have covered the shift and middle mouse by the control middle mouse button and normal middle bias. But so those are the three essentials, or fundamentals for using and navigating three D space. So it's pan rotate and zoom, but yeah, otherwise, before we get to the practical. If we had you to softwaretraining.co.za z, a guy's got a variety of different Softwares you do cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to something you requested. Training video. Fill in the many form, and then we'll do our best to try and make that for you. But otherwise, things guys for watching and cheers
