FabriCAM Software P53 Flat Part Chamfered Rectangle (Part 25) Step by Step Video Tutorial

With the part number P53 you will notice that it looks very similar to the Hexagon shape.

Seeing that we already covered the Rectangle with rounded corners, it is only fitting that we cover the Chamfered one as well.

This video is part of a Mini-Series.
Next video covers P54 Rectangle Blocked out Edges.
Previous video covered P52 Complex Rectangle Cut Out.

Video Transcript

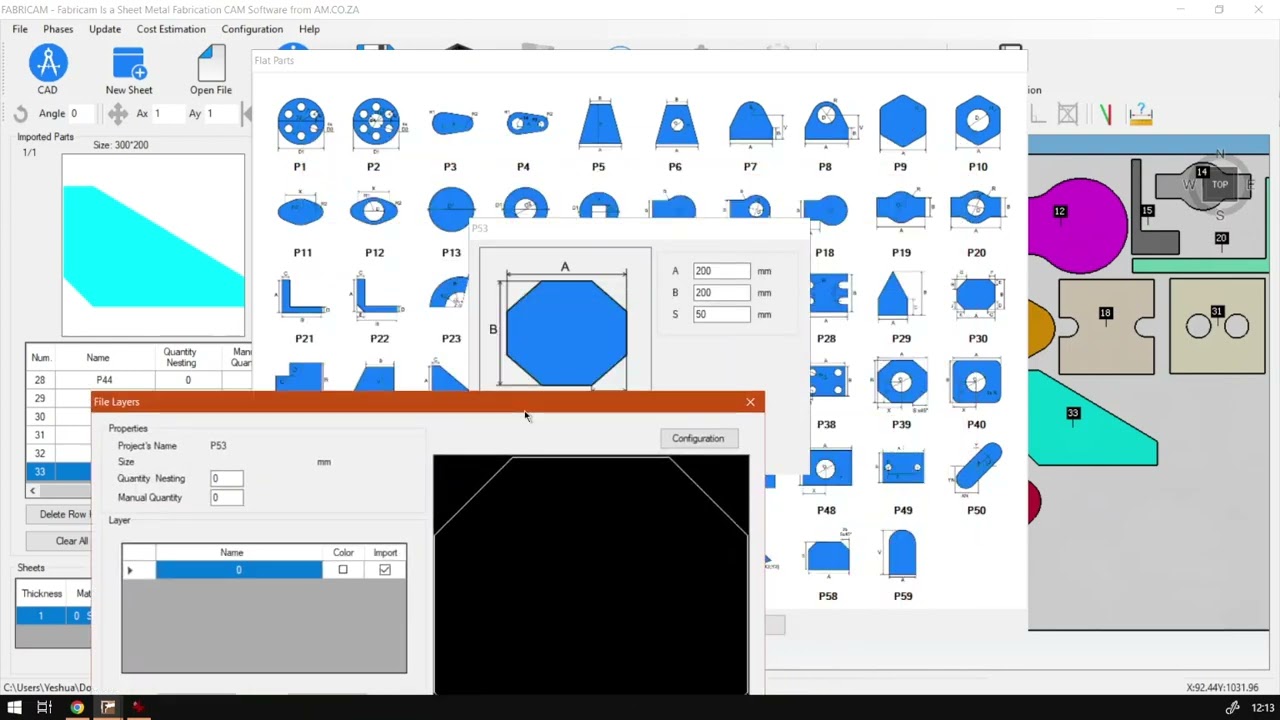

All right, guys, In today's video, we're gonna be looking at part number 53 this will be from our intermediate flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z day. We make sure an easy to watch problem solving videos, and we also have daily updates. Otherwise, we head back into the programme here now. Yeah, so Part number 53 it's a In many ways, it looks similar to a hexagon, but it's obviously not. It's probably a more, uh complex name for it, but unfortunately, not first go Look, all that I know at the moment. So if you go to p 53 it's pretty much a square or, in our case, a rectangle because you can see both sides with Samford ages. So I think we've already covered the one with a rounded edges. So now we're looking at the shampoo, which is quite a handy on to have you use it quite often. So now from us sitting here, if I zoom in again, we can see here We've got a so this sets the with gotta be That sets the height, and then we've got a sorry the s that sets the corners at a 45 degree as well. So, once again, let's just sending some values here. I'm gonna make it a square this time. 200 or 200. Let's go about 50 corner and say this. Preview that and see what it looks like. Yeah, I think that looks pretty close to our little reference. Reference is a bit wider, though, but I'm gonna keep mine a square. Then if you have to do that, we say one. Now, obviously, you can set these shampoos toilets basically creates a sideways, um, square. So just keep that in mind as well. So I'm gonna go ad and then let's add this to our canvas. There we go. We've got our part. Number 53. I think there's maybe about three more parts, and then we will be done with the intermediate part So well done for joining me this far. If you're still going. So then I hope I was a fit in the last three of the year. I think we should be able to if I just worked or play safe Yeah. Otherwise, if we head here to softwaretraining.co.za. You will notice we've got a variety of different Softwares we do cover, so do cheque them out. And also, uh, you can isolate your search here if you do not find the videos you're looking for or should I say, If you want to isolate your research, then if you do not find the videos or any topics, you can always go here requested training video, filling the uniform and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching till next one. Cheers.
