TruCUT RDWorks the System Work Plats (Part 8) Graphical User Interface Mini-Series

rdworks user interface

The System Work Plat is a great place to find most of the relevant information for the current Job at hand.

When it comes to the complexity of the User Interface and options available for this panel, it is by far the most advanced of them all.

This video is part of a Mini-Series.
Next video covers GUI Process Control Bar.
Previous video covered GUI Draw Bar.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

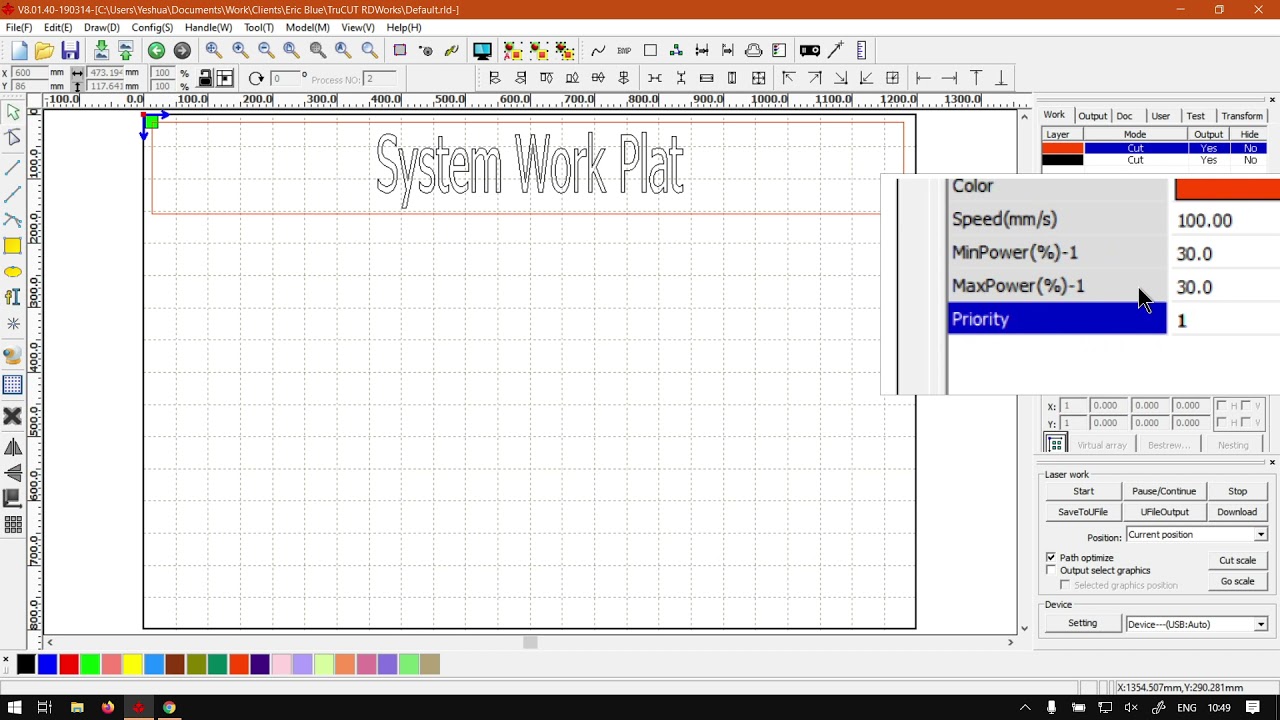

hi guys. In today's video, a troop that already works. We're gonna be looking at the system work plate and a few of the tabs that come with that. But before that, let's have a quick intro first. Yeah, mhm. Mhm. So today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise we're back in the programme here. Now, once again, just a quick reminder. This is a miniseries on the graphical using to phase for true that already works, and also most of these videos and this ministry is going to be overview. Oops. We also have relevant links in description. So if you guys would like to follow along with some previous ones or move to the next one, then when it comes to the actual system workplace, it is located here on the right. It's this top section and it will also be a panel where you can find a lot of your information on your current project and also able to set values. As you can see here, we've got stuff like speed and minimum power, maximum power priority and so forth. If it is not here, however, you can always go to your view. And then you never get to U C system work plate. You can just simply cheque this on and off here by the cheque boxes. No, Like I mentioned, this thing has got multiple tabs for different options. So we've got the work tab output a dark, use a test and transform all of these tabs is relevant to individual directions and, uh, obviously different purposes. And we were going to more depth on this in future videos for now. Just so you know, it's called the system workplace or sometimes in all the versions to refer to as the control panel. So this is for all the relevant information to the project and so forth. Otherwise, yeah, If we head here to softwaretraining.co.za c o dot z. You guys don't notice You've got a variety of different software to to cover, and also you can isolate your search on the top, right? If you do not, however, find the video looking forward, just go here to request a training video. I'm filling the mini form and then we will try and make that video for you. But otherwise thanks guys for watching and cheers
