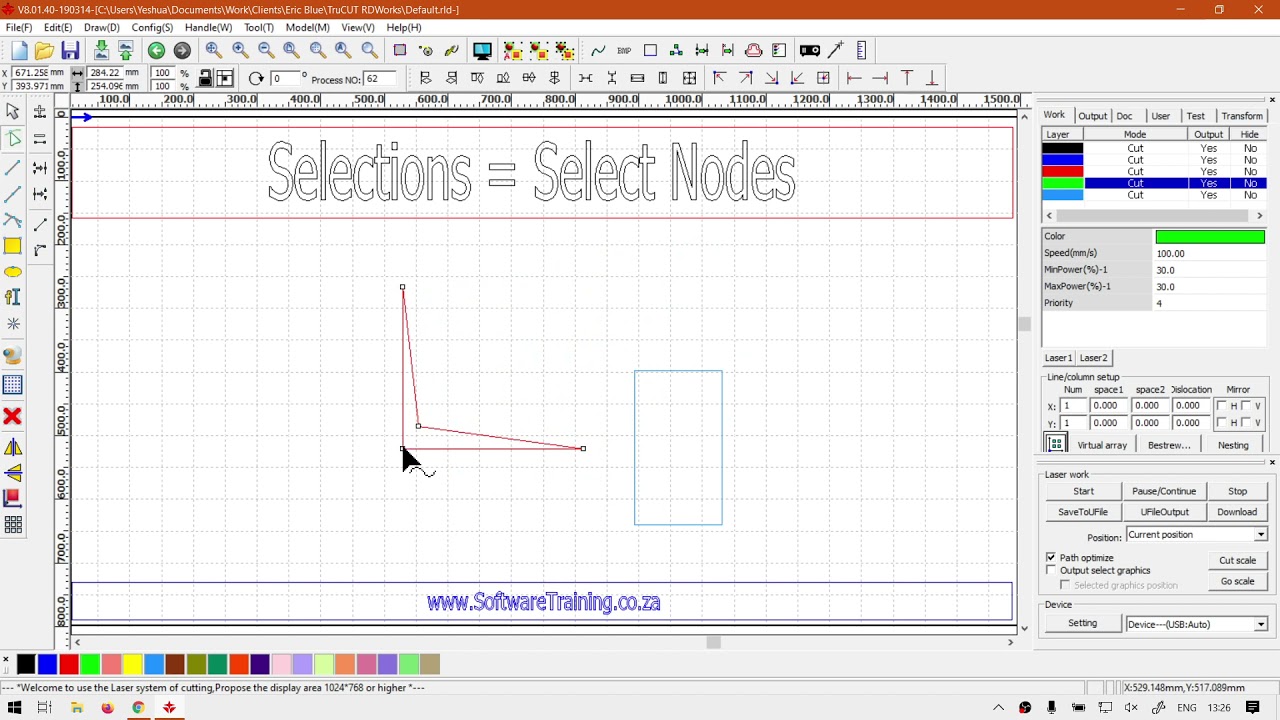

TruCUT RDWorks the Selecting of Object Nodes (Part 5) Selections Video Mini-Series

rdworks select object nodes

When it comes to the selection topic, being able to select Nodes within an object is the next step.

When you are selecting object Nodes you will be able change the original object shape and final look.

This video is part of a Mini-Series.
Previous video covered SM – Layer Select.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

Bye, guys. In today's video with Trick that already works, we're gonna be looking at how to select nodes within your objects and shapes. And yeah, but let's have a quick intro first. Today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates otherwise back in the programme here. So now just a quick reminder. This is, uh, series on selections, different ways to go about selecting objects and shapes within your design. And also I will leave relevant links and descriptions. You guys can follow a lot now this is the last beautiful this miniseries. So thank you guys for joining me, am I appreciate it and this is a little bit of the topic, but it is still related to selection, so it's not so much about selecting your shapes as it is selecting the nodes within your shapes. So now, in order to do that, So let's say you wanted to take this cube, and I'm sorry, this rectangle and make it, um, into another shape. We'll have to edit it's notes. So in order to do that we go to our draw bar. Then we've got this on the Reddit node feature. Under our selection tool, you can also located under your draw bond your main menu, and then you can see there. We've got edit note. So now with that selected, if you've got a shape selected with that, there's obviously other features which we have covered in different series is on how to actually use this. But the basics of selecting notes as you have that selected and then you click on the node you want selected. Simple as that you will see it turns to a life green. Now you can somebody just keep your left mouse button in and move it around. So if you wanted to create a new shape, you can do it like so can't even try and make it look more like a triangle. So yeah, that is it. On selecting nodes within your design, you can obviously like a normal selection tour. You use your, um, left, click and drag if you hold it in and makes a box select select multiple notes. So if you wanted to change them together, he can also do that and uh, there are the simple feature to use, but it is very handy if you need your edit notes. Otherwise, yeah, that is it on the selection miniseries If we hate here to not hate If we head here to softwaretraining.co.za hat's the end of the day. You guys will notice, Um, we've got a variety of different software to recover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to. Somebody go here, requests a training video filling the uniform. Then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
