TruCUT RDWorks LGP Positive and Negative Values (Part 15) LGP Design Videos Mini-Series

rdworks lgp values

In this video we will be looking at what happens when you add a negative value the LGP Feature.

Now one thing to keep in mind, and that is that there is only a handful of options that support the negative input.

This video is part of a Mini-Series.
Next video covers LGP Design – Circle Dislocation.
Previous video covered LGP Design – Point Length.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

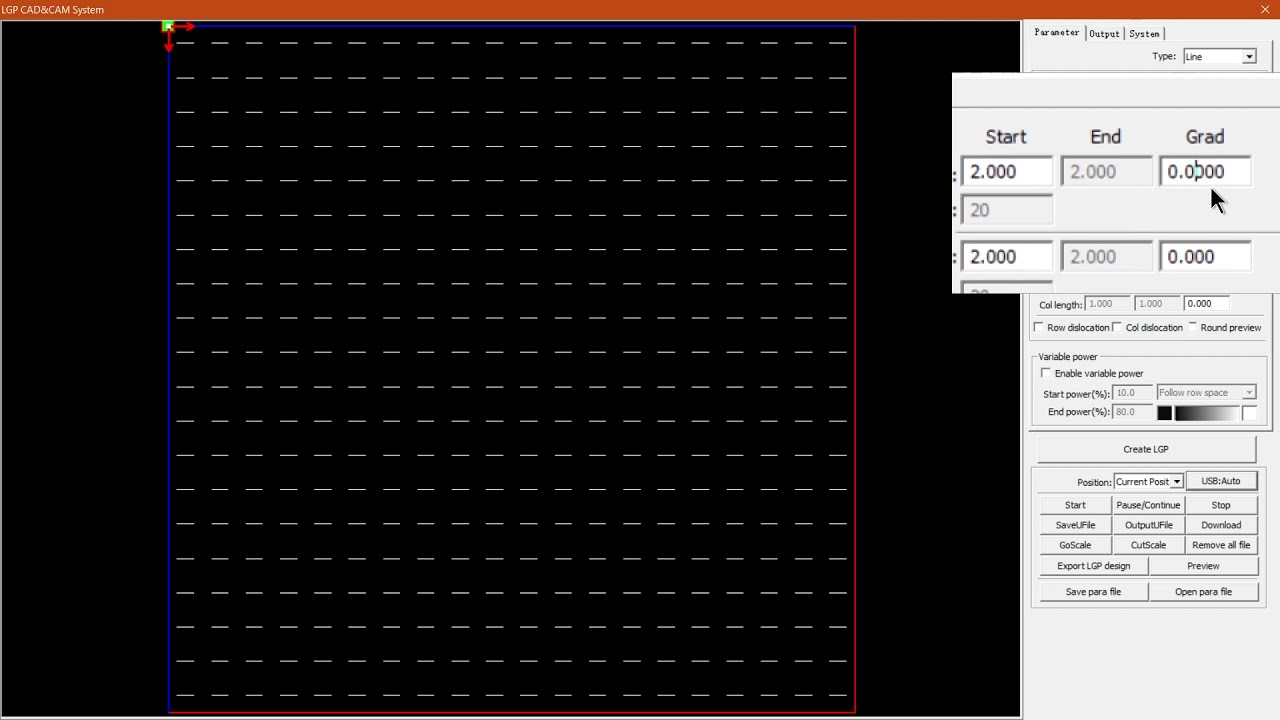

are you guys in today's video for the L G. P design feature, we're gonna be looking at setting some values in reverse. But before that, let's have a quick intro first. Mm. So today's video can be found on softwaretraining.co.za. They'll see you today. We make sure that easy to watch problem solving videos and also daily updates otherwise back in the programme. Yet now, when it comes to the reverse value So this is a great way to set something in the opposite way to what it was. So should we get the positive and the negative? And a lot of the features do handle it, but not all of them. And today we're gonna be looking at the LDP, especially with the Rose. Perhaps So first of all, uh, just a reminder that this is a very serious on the l g P design and I will leave relevant links and description so you guys can follow along. Now if we go into the programme, it's gonna set up your quick grid. Now, let's put a bit of a gradient, so I'm gonna make this 10.2 just go to system, pick, apply, and Now we can see we've got a gradient coming from the bottom, going bigger to top. Let's say you wanted to reverse that quick. Way to do that is we can simply go to the gradient and we set this to a negative value. But there is something to keep in mind, However, so if we click, apply here, You will see now. No, it's going from big to small, but yeah, we kind of need to get this threshold right, So a small starts right at the top. Then to do that, we wanna set our road distance. So let's go. Maybe about four or five apply. We can already see it. So let's go About four thing for look a bit better. And then there you go. Now we've got it coming from small to big top down. So now obviously these this works with the other values as well. So you can just play around if you need to have something going in the opposite direction. So it is great that it can do it or you're not stuck to just one direction. Um, it can be quite handy at times, but yeah, there is it on a class basis and minus or the first values if we had here to softwaretraining.co.za c o dot z a. You guys will notice we've got a variety of different Softwares we do cover and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward, just simply request a training video, fill in the many form and then we'll do our best to try and make that for you. But otherwise thanks guys for watching and choose.
