TruCUT RDWorks the LGP Circle Type Options (Part 12) LGP Design Videos Mini-Series

rdworks lgp circle type

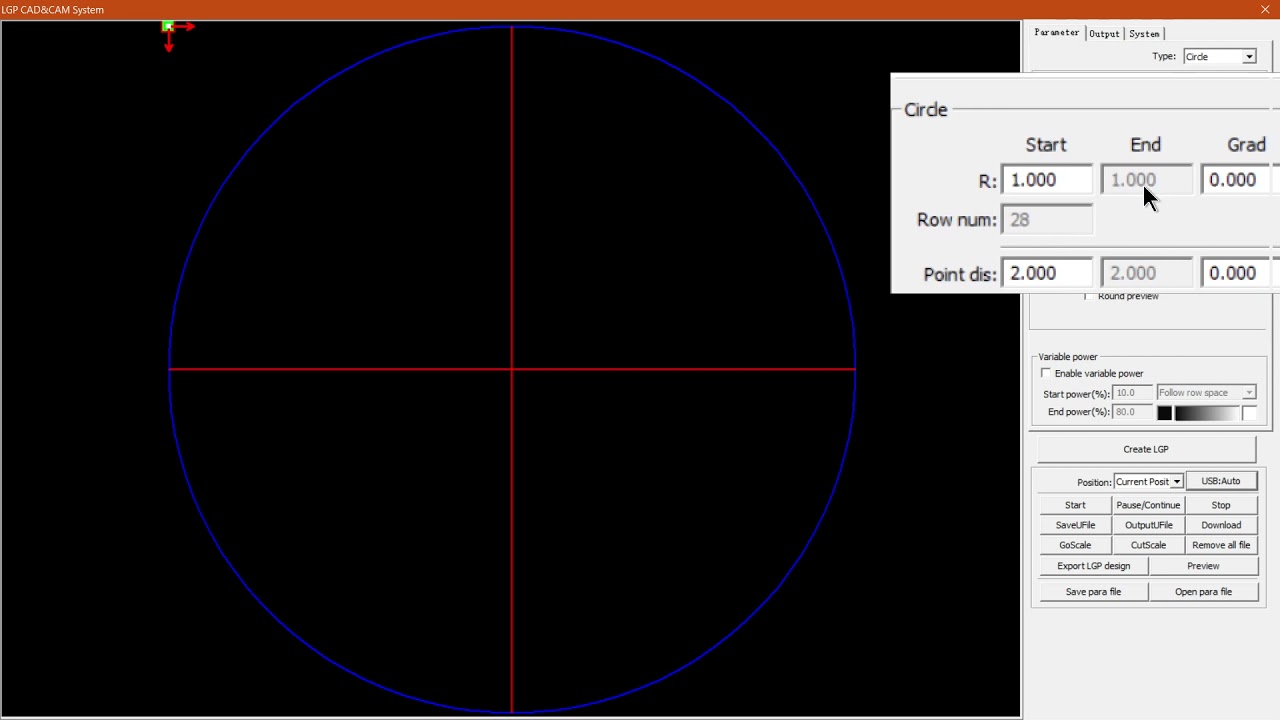

When it comes to the Circle Type option for the LGP Design Feature it is quite similar to the Line Type.

Even though in many ways the Circle Type is similar to the lines type, there are a few key differences in how the options works and also what they are called.

This video is part of a Mini-Series.
Next video covers LGP Design – Circle Spacing.
Previous video covered LGP Design – Round Preview.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

Hey, guys, In today's video, we're gonna be looking at your circle type. Let's locate it within our G P design. But before that, let's have a quick intro first. Yes, Uh, so today's video can be found on softwaretraining.co.za c o dot z. We make sure and easy to watch problem solving videos, and we also have daily updates. Otherwise, we're back on the programme yet now, just a quick reminder. This is a mysterious on the L G P design feature and I also leave relevant links in the description. My apologies. So you guys can follow along now if we open the future, you're on your draw bar will notice under our first panel, the parameter we've got this type and then previously we looked at the line. If you guys can remember with road isolation, um, dislocation and around preview and all of those things. Now we're gonna be changing this to circle. Now there is a few things to note right off the bat. You will notice we only have one light type we can take. We'll show us how to four sidelight type and under the light position. We also only have one option, which includes all of them. So it is top left top right, bottom right bottom left, cross position the centre. So if I had to just go into the preview, we can see our cross positions in the centre. And with the blue, it's lighting it from all directions. Now, some of the other values, um, we're also different even though they set similar things. So we'll be running through this in a future video just to get out up to scratch. About what? These do, Which one set which sends under this system something to keep in mind. You can have a circle light are simple. Um, type with correct tangle. So I'm gonna click, apply here. You can see we can actually have circle within. And we can try and fill this all the way. So it fills the entire rectangle. So that is something to keep in mind. It doesn't have to be with their lips. But for the sake of this video demo, I'm gonna do it with their lips so they know we can actually time or fit this shape. So just quick recap again. So the circle type, you'll notice we only have one light type we can use, which includes all of them. So we cannot switch to just a part of it. And then also, you can use it with a rectangle or custom shape so you can put your own custom shape as well, then, yeah, that is it on the difference between, um, so called type to the line. If we had to adhere to softwaretraining.co.zazm, you guys will notice we've got a variety of different software to recover, and also you can isolate your search on top of right. If you do not, however, find the training videos you're looking forward to seeing, like a year requested training video. Fill in the mini form, and then we'll do our best to try and make that for you. But otherwise thanks, guys for watching and cheers
