SAi FlexiSTARTER 19 Cut and Plot Preview Panel (Part 8) Cutting and Plotting Mini-Series

flexistarter cut plot preview

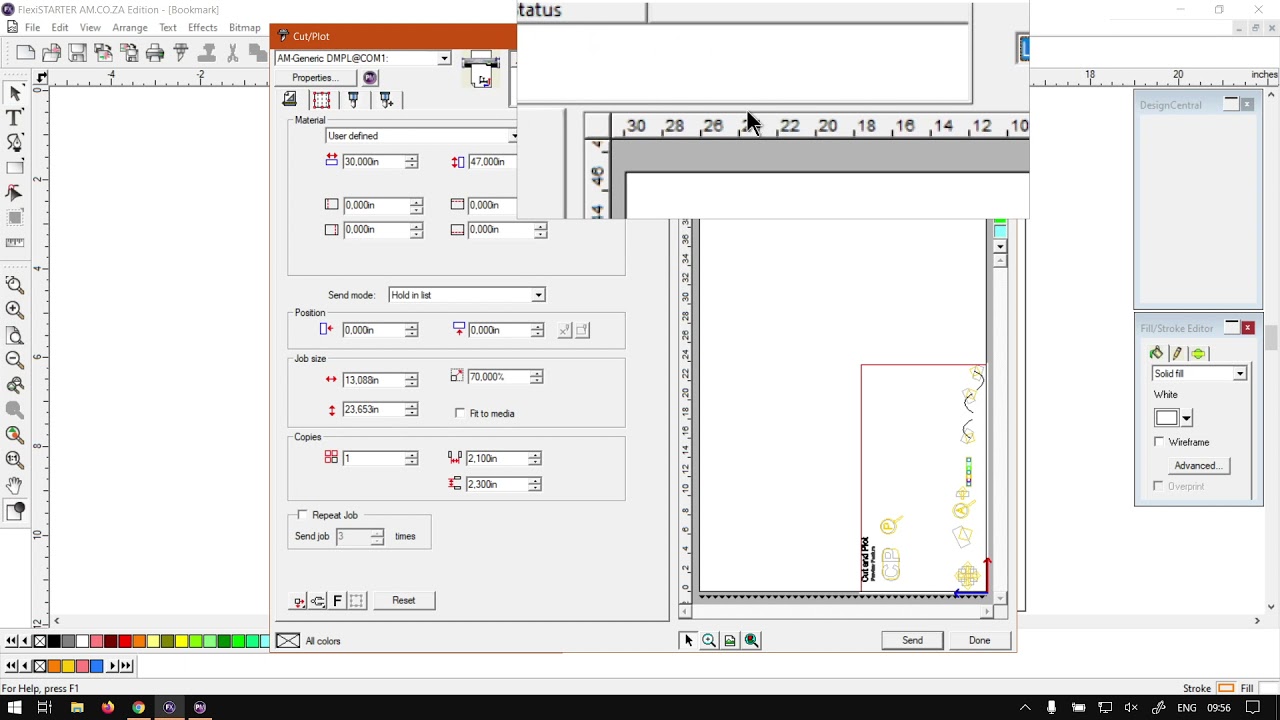

When it comes to the plot and cut feature, the preview panel is where you will see all the changes you make within the settings.

the great thing about the preview panel for the cut and plot is, that you are able to with most of the options do live changes using your preview panel it self.

This video is part of a Mini-Series.
Next video covers Panel Tab Size.
Previous video covered General Tab Extra Settings.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

All right, guys, in today's video Flexi starter, we're going to be looking at the current plot preview feature, but before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za c o dot Today we make sure and easy to watch problem solving videos, and we also have daily updates. Otherwise, we go back into the programme here. Now, just a quick reminder. There's a miniseries on the garden plot feature and today we're gonna be looking at the previous thing. So in order to get to the preview, we first need to open the current plot feature which will be here next to our printer icon on our standard two. We can see the shortcut first control how we open this, then on the right here, we will have our preview future. So any changes we do on our tabs on that, we all should see a change here. And you can also change the and look over here and so forth of your previous so it makes it easier to navigate and see what you're gonna be changing. So first of all is just quickly looking on the top. So a year. We've got the layout preview and then we've got a panel preview the panel. You can see you can actually scale this panel. So what What contents is in? It is going to be printed. Oh, the layout. I just keep mine at the layout and then I'll just the other ones accordingly. Then on the right here, we've got these colours. You know what you can do with these? Like, let's say, take this, uh, yellow orange. There, you can always write like that. And then you exclude the cuts and you'll see all the orange there, or the yellow will be removed. So now likewise, you just right click and put it back. You can do it for all the colours. It's a little arrow at the bottom where you can navigate through the ones that you cannot see Then on the top and left. Here. We've got the rulers. So this basically tells you how big your design matters or your rather your material. And you can adjust that like we saw in the previous one on the materials under your general tap. Then obviously, we've got the slider bar. So if you're zoomed in you can use them for navigating around on your material and then at the bottom. Here, we've got these four settings. First one is a select tool. So we can use this to relocate opposition. Our design, it's gonna keep mine in the bottom right corner for now. And then we've got the zoom. We click that and click normal left click. We can zoom. If you keep controlling, you'll see the icon change this there from a plus to a minus and then we can zoom out. Then next up, we've got, uh, zoom with. So what this will basically do is it will fit our zoom to the width of our material not to design like like that, and you'll see it put our whole hour Liza with of the designing and then lastly, we've got the actual zoom objects, so this will be relevant to your design. So anything you design is gonna try to fit it into the preview when we click this, then, as you can see there now, everything's in. But just keep in mind, this is only the preview. So if you're gonna be now printing or cutting this, it's still gonna cut it on your material, Um, with the same space. So I mean, there's only gonna be on the bottom right corner there. So in order to fix that, you'll still have to go either on foot to media or set the scale individual. Now, as you can see, if we zoom with this one for two with which will be our material where our designers also stopped full. So we basically re scale are designed to fit the material. And then you can just manually justice to the centre if you want it. Otherwise, that is it on the preview, too. Feature for the curtain plot. If we had here to softwaretraining.co.za y, you guys are going to get a variety of different software. You'd recover and we'll see. You can isolate your search on the top of right. If you do not, however, find what you're looking for. Jessica Year requested training video. Then we will make that video for you. But otherwise thanks, guys for watching and cheers
