FabriCAM Software Create Hole Sequence Manually (Part 4) Step by Step Video Tutorial

fabricam create hole sequence manually

After we have covered the Cutting Direction, we will be looking at the Create Hole Sequence Manually.

This video is part of a Mini-Series that covers all the different tools located on the CAM Secondary Toolbar.


Next video covers Hole Sequence All Shapes.
Previous video covered CAM ST Cutting Direction.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

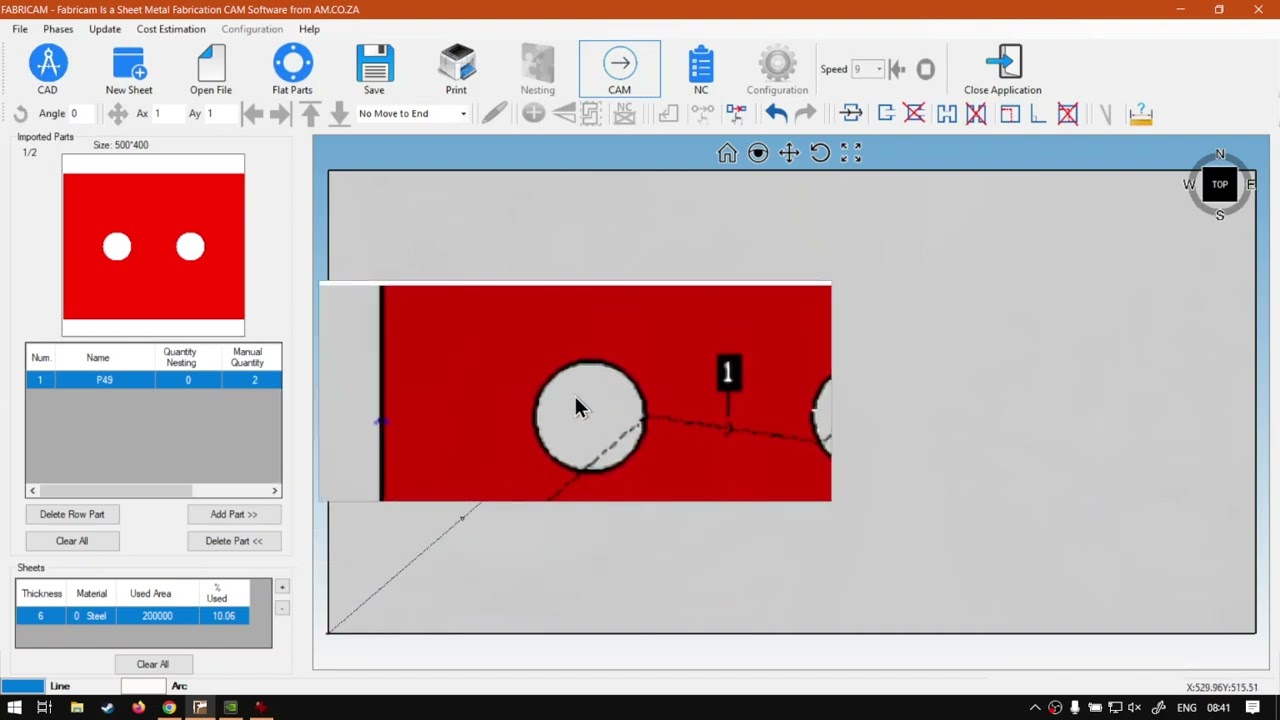

How are you guys in today's video? We're going to look how to create a manual sequence for holes within part. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise, we head into the programme here now. Like I mentioned today's video, we're gonna be looking at setting up the sequence of holes and how that works. So now this is obviously for the camp feature which were busy with, so this won't work for anything else. It's a feature directly related to Cam, and you can only find it once you in your camp, Um v h o on the secondary to work. So I'm gonna add a part here so we can see a little bit of centre to the left. Now, this will work with any part with multiple holes inside. If you don't have one hole, it's not really do much as this is the sequence of the holes being cut. So now with the part inserted, I'm gonna go here to camp openness and then just right off the bat here, we can see if I zoom in your for you guys. We've got the sequence here it comes in from the bottom left. It cuts the first hole, cuts the second all and then cuts the actual rectangle. So, as you can see here, starts by left goes to right. Then what we're gonna do if you want to set it up, I'm gonna this maybe quickly. We don't need to preview because we can see a little arrows. So I'm gonna select this and then we go here to the actual feature, which is create whole sequence manually. It's here, right next to the change cutting direction. So now if I click this, we have this nice little preview box that pops up with a few different settings. Now, what we can do, we're gonna go here and choose a direction at the moment going from left or right. So I'm gonna select from right to left. And then once you've done that, you can see blacks out the holes in the right sequence, and it shows the arrow in the direction that it's going. Now I have found sometimes you will set it, and then nothing happens. So what I found, then just reset it at the same and then it tends to update. So make sure also you look on your little Cuba that it has updated. So the moment that we can see it goes from left to right. So if I say okay, yeah, you can see it is updated. Now it goes from right to left. So if we are hit a quick previa, we can see it cuts the right hole, and then the left whole and then the actual rectangle around it, which is pretty convenient. So it's just exit out of that, then, uh, also, what we do have is the clear option. So if I go here to the actual okay, not that if I go to the actual programme, then we can also clear it if we need to, which can be quite convenient. But yeah, otherwise that is it on the actual, um, what do you call it? Uh, cutting direction. So you can obviously set it back by just going in there and changing it to the other direction, which can be convenient. So if I have another part in here. Let's just go to camp. We can see at the moment it's mirroring. So it's going from right to left, and the next one is going from left to right. So it is nice that you can set it up for custom shapes, but yeah, otherwise, if we had year to softwaretraining.co.za. Guys will notice you've got a variety of different Softwares we do cover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward. Just simply go. Yeah, request the training video, but in the mini form. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
