FabriCAM Software P35 Advanced Rounded Rectangles (Part 15) Step by Step Video Tutorial

Now in today’s shape with the P35 Advanced Flat Part we will be looking at taking a preexisting part and rounding it off.

The nice part of using the P35 Flat Part is that we just covered it’s more basic version, so getting the hang of its options should come quick.

This video is part of a Mini-Series.
Next video covers P36 Rounded Rectangle Cut Outs.
Previous video covered P34 Advanced Rectangles Combo.

Video Transcript

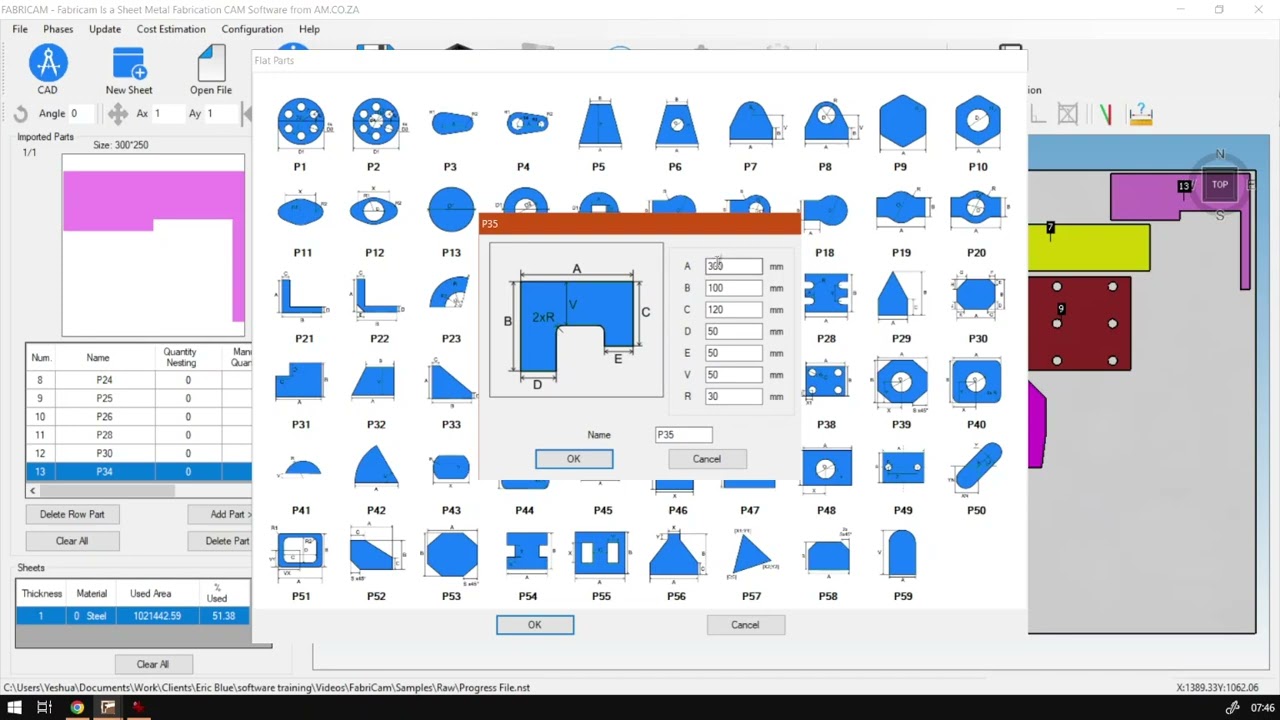

Yeah. Hey, guys, In today's video, we're gonna be looking at part number 35 from our advanced flat parts. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za. Got here that we make sure that easy to watch the problem solving videos. And we also have a daily update otherwise weird into the programme here. Now, Uh, yeah. Part 35 is pretty much gonna be, uh, more advanced version of the part we just covered, which was the combination of three different rectangles. So what I'm gonna do is I'm gonna go here too. Flat parts they wanna navigate to part 35 which you can see over here. I'm gonna click here and then we'll see what we've got. So now, like with the previous one, we've got the a N V to set the first rectangle be indeed set the second one and then C and E to set the third one. But then extra option we have here is the are for rounding and we've got times two. So these two inside corners, we can around them. So pretty much the races all the same. So I'm just gonna quickly fill in a few a 300 then make my V Let's make it up stupid. Quite standard. So I'm gonna have 50 and then we've got B and D. So be this time I'm gonna make this one about. That's why you've got about 100 and then d I'm gonna keep it the same as the other 1. 50. And then we've got C which just find that when we get a little bit longer So you want 20 and then we've got E, which we're gonna set also 50. So now the general with of this, um, inside of the shape should be the same. So lastly, we go rounding. I'm gonna maybe make this about, uh, see, in America about 30. And we see everything looks fine. Preview. Here we go. I've got a rectangles, and then we have the actual what you call it Grounding of it. No, I think I may be going to just make the top one. Not so, uh, broad. So that's when we make it 200 preview it. Here we go. It's a bit more manageable. I'm gonna go many appointees. One and then add this to our canvas. There we go. So now just so you guys know once again, this is just basically, uh, more advanced version of the one we just did on top. So yeah, only differences were Obviously, we're adding a bit of rounding to it, and, uh otherwise, it's pretty much exactly the same way. I don't think I'm gonna fit this one in me. It's a little bit tight. Yeah, Maybe if I move this one that one and just a reminder. Yeah, these select shapes. It's something I started to get used to. There we go. Okay, So that is our part. 35. Like I said, it's a three rectangles with browning on the inside. Pretty simple, straightforward, and it's a handy little shape to have. But otherwise, if we head here to softwaretraining.co.za got, guys will notice. We've got a variety of different Softwares we do cover. And you can also isolate your search here on the top, right? If you do not, however, find that training videos you looking forward to simply go Yeah, requested training video filling the mini form. And then we'll do our best to try and make that for you. But otherwise thanks guys for watching and changes
