TruCUT RDWorks the Delete Overlays Feature (Part 6) Extended Tool Bar Mini-Series

rdworks delete overlays feature

When you looking at optimizing your cutting process and speed, then the Delete Overlays can be of use.

This feature, the Delete Overlays will unsure that you do not cut overlapping lines more than once.

This video is part of a Mini-Series.
Next video covers Offset Polygon.
Previous video covered Combine Curves.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

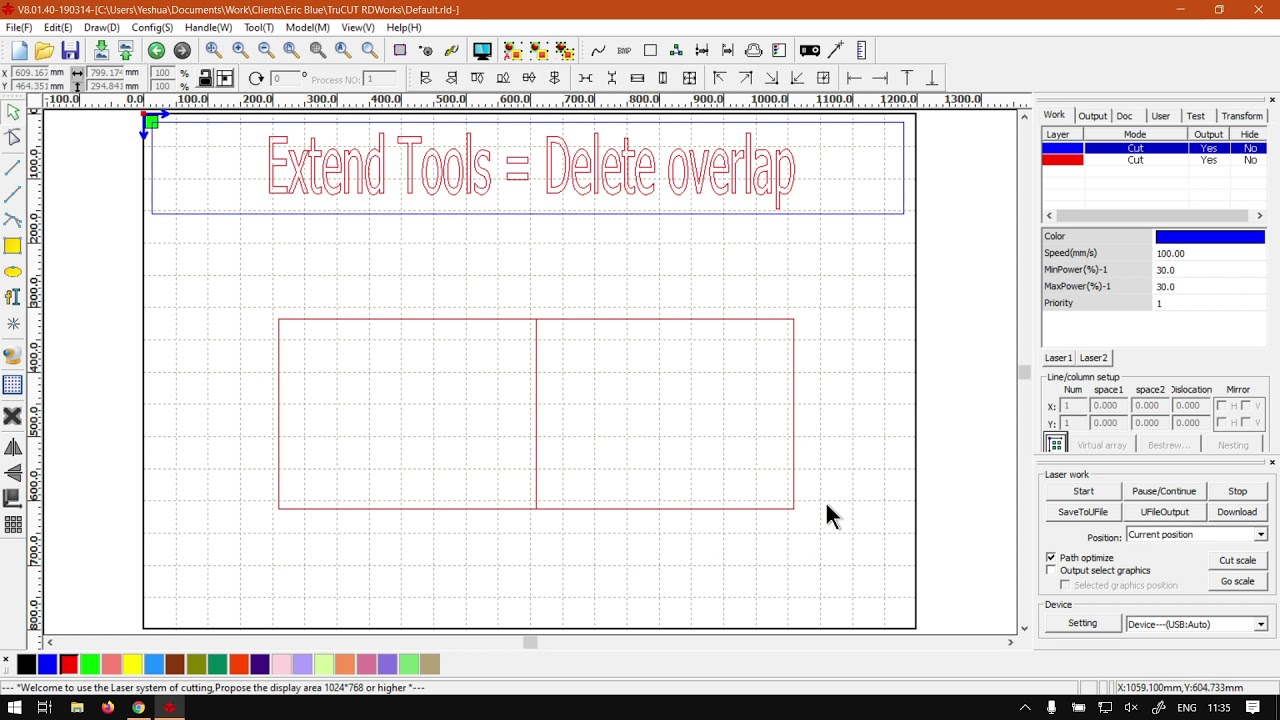

Hi, guys. In today's video, we're gonna be looking at the delete overlap feature located on your extended tools panel. And this will be for true cut already works. But before that, let's have a quick intro first. Yeah? Mm mm. Yeah. So today's video can be found a softwaretraining.co.za C o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise, back in the programme just could reminder this is a miniseries on the extent tools, which is this too well located on top of right here. And I will also leave relevant links in description so you guys can actually follow along. Now if there are any reason, you do not see this too. But you can always go to view extend tools. You'll see countries checked on, so you'll just be checking a day. If it is not now, when it comes to the elite overlap, this is just gonna be a quick overview. We'll go into more depth on how to use it and future videos. So the late overlap is great for speeding up your laser cutting process so it will basically remove any overlap, so does not cut it twice. So, for instance, in this case, we've got these two rectangles, and as you can see, we've got an overlap of a year with this line in the middle. So what will currently happen is, if you're cutting, let's say we start kind of start on the top, right? I will be cutting this rectangle. They don't move, and then I'll cut this rectangle and cut this line again. And as you can imagine, the more complex the designers with, uh, overlaps, the more, um, time it's gonna take to re cut the same area where it is already cut. So with the elite overlap feature will simply remove any overlaps, depending on the threshold you've set. And then, um yes, PW cutting. So to locate it will be on our extended tools, and it will be next to the combined curves, which we'll cover in the previous videos. You'll see, says the league overlap. Keeping in mind this will only work if you actually have, uh, curves and that's selected so we can see now the arrows green, so it means we can actually use it. But yeah, otherwise that is basic overview on the delete overlap located in your extended to extend Tools panel. If we had to head here to softwaretraining.co.za hat's the end of the day. You guys will notice we've got a variety of different software to recover, and also you can isolate your search on the top of right. If you do not, however, find the video looking forward to go here, request a training video and then we will make that video for you. But otherwise, things guys watching and cheers.
