SAi FlexiSTARTER 19 the (DC) Rotate Tab (Part 5) Design Central Video Mini-Series

flexistarter design rotate tab

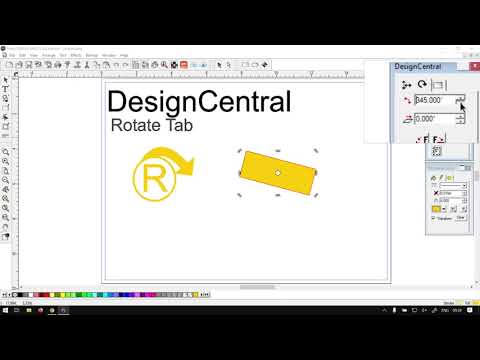

The Rotate Tab of the Design Central panel allows you to rotate, shear, or mirror selected objects.

You can change them either by dragging the objects’ control points or by changing the numerical values on the Rotate Tab in the Design Central panel.

This video is part of a Mini-Series.
Next video covers the Object Tab.
Previous video covered the Scale Tab.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

other guys in today's video. Flexi starter. We're gonna be looking at the rotate tab on design Central panel. But before that does have a quick intro first. So today it's been opened, found on softwaretraining.co.za. We make sure that easy to watch problems solving videos, and we have daily updates. Otherwise we're back in the programme. Yeah. Now, just a reminder. This is a miniseries on a design central panel, which is this panel located on the right. Um, I will leave relevant links in the description so you guys can follow a lot. So to locate the panel. If it's for some reason not visible, you can always go here. Um, next year, undo and redo buttons on your standard toolbar and we just click that little icon next to them. Don't ask me what that icon represents. I'm not too sure, but, uh, otherwise, yeah, if we start off. So let's grab. Just gonna make a rectangle. Yeah, so we can see a few of the different options. So now, under our design central, The second tab, as you can see, is there a tight option? Keep in mind there are taped tap will only be available on certain objects. So if you can. If you see here, if I just click on my background, there's nothing where the design central has it. Or should I say text has it, and then opposite shapes serving just head back there. And then what we have here is our first option, which is for the rotate. So if we go to a positive value, you'll see it rotate it counter clockwise and a negative rotation, um, rotating clockwise. So that is something to keep in mind. Obviously, you can click here, use your mouse wheel to rotate, and I'll show you the degrees there. Or you can use the arrow keys as well. You can also type in here. If you want something specific, like 45 degrees, then you can do that with zero Then. Also, another thing to keep in mind with the rotation is the origin point of rotation. So as you can see here in the middle, we've got this white little dot now similar to the scale tool. We can't set it here at the bottom, so if we want the rotation to be around the top right corner and see, we click that now and rotate kind of Rotate it more like a door or something in that line. Then, um, but another thing that you can do so you can manually click this dot and move around to wherever you want. So let's say you've got two objects overlapping can always align this to a point of it and then rotated around that point. Then, for some reason you want to reset the origin point. You can either click on this one or you can just simply changed helps when you come back. The point is, we set then, Um, yeah, The next up we've got here is, um, the rotating 90 degree angles with these buttons. So, as you can see, the one is counterclockwise and the other one is clock whites, then, uh, under that, what we have is the sheer option. So if you increase this, then you will share to the right decrease shit. It will share it to the left. And then, um, yeah, keep in mind if you want to share it on these sites, you can obviously use these handles, but otherwise you can get a state at 90 use the same option and just rotate it back if he wanted to only use features within the design central panel and then last up on this little list. We've got the flip, so the flip is a bit hard to see because of the shape. So let's just rotate it like this. Then we should be able to see it. So first of all, we've got flip X access, which will be It should be horizontally as we can see there. And then we've got the vertical as well, which right now it's very hard to see what's happening because they both look like the same. But in other words, one will be flipping it vertically and horizontally. And yeah, that is it on the rotate, I mean, sorry together. Rotate. Otherwise, if we had here to softwaretraining.co.za y, we have a variety of different sources to cover, and we have a national search options. You're looking for anything specific, always typing here, hit a little search button and then bring up the results. And if we don't find what you're looking for, you can always go here, requested training video. Then we will make that video for you. But otherwise thanks guys for watching and cheers
