FabriCAM Software P55 Advanced Tri Rectangles (Part 24) Step by Step Video Tutorial

fabricam p55 advanced tri rectangles

When it comes to the Rectangle combination shapes that we have covered, this is by no means the most advanced one.

But with that being said it is in my opinion one of the nicer ones to work with.

This video is part of a Mini-Series.
Next video covers P56 Advanced Home Shape.
Previous video covered P51 Rounded Rectangle Combo.

Video Transcript

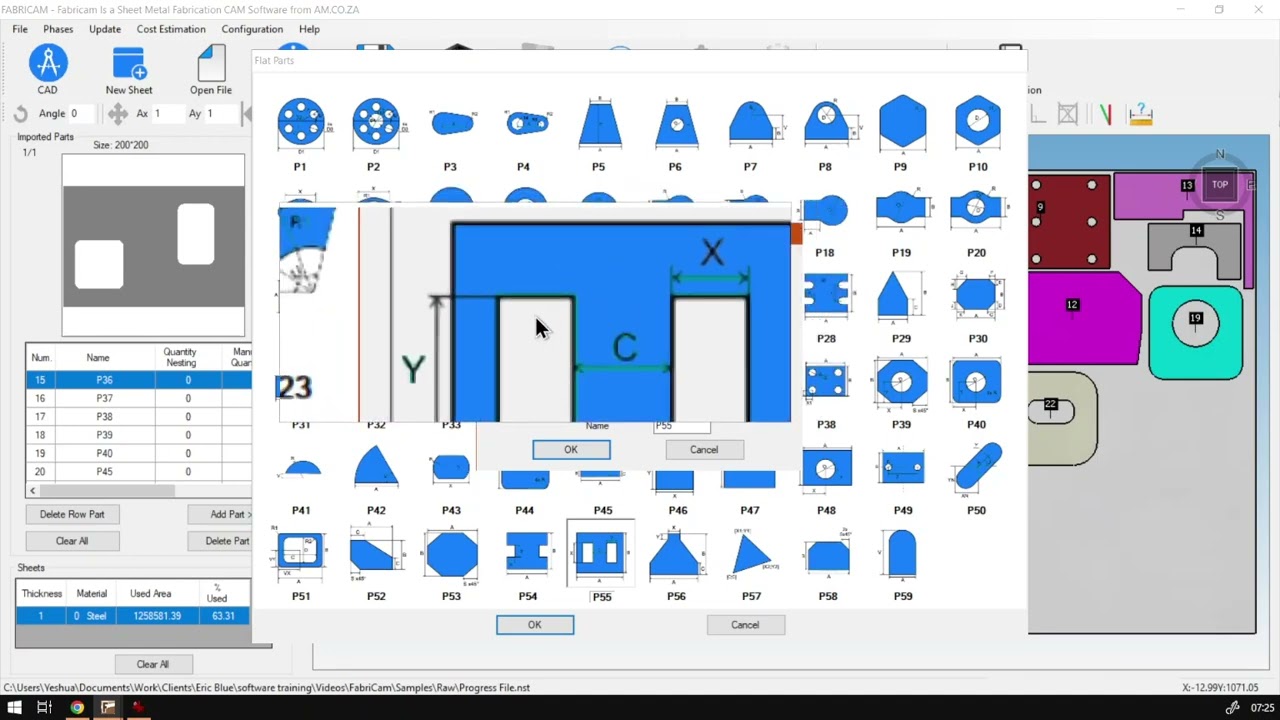

Hi there, guys. In today's video, we're going to be looking at part number 55 from our advanced flat part. But before that, the topic Quick intro first, so today's video can be found on softwaretraining.co.za Today. We make sure it's easy to watch problem solving videos. We also have daily updates. Now, if we're back into the programme here, so today's shape we're gonna be looking at part 55 so you can view it as a few different shapes as a base should I say, um, similar to a few different base flat parts. But ultimately, this is gonna be a combination of three different rectangles, so it's not gonna be quite as advanced as this rectangle over year p 36. There will be a more simple vision, but it still falls under the advanced parts. So if we go here to p 55 we can see we don't have that many settings. We only have five. And if we zoom in here, we can quickly see what do we have? So now, first of all, we've got over here the A N B, which is within height, like usual then what we have is we've got the Y, as you can see over here for the height and the ex, and you might also notice that it's set it for both. So if you said why For the one of a set for both an ex or set the boat and this one's differences, we can adjust the centre. So how far those two shapes apart from each other? So let's set this. I'm gonna make this once again. Let's go about 200 or make it stops around a bit. Yeah, it's got 200 the bottom 2. 50. So I like to do what it once was to make a tour one month. Like I said, next up, what we're gonna do is first established the size of our rectangle cutouts. So I'm gonna make, uh, height, Yeah, maybe keep the theme going. So this first go X. So I'm gonna make this one about 30 in the height. I think, Let's make it about what do we have to 50? So we can easily go but to 30. So we quite a large cut out, and then, um, I think I want to make this a little bit broader. Let's go about 50. And then if we put let's say about, uh what is this? About 75 spacing between and you have a look at that because it's to the edges, not to the centre. It's preview it. There we go. We've got almost looks like one of us all school lockers. So we've got that shape now, obviously, Um, yeah, you can adjust this point to your actual design or ideally, you shoot what you can. And then I'm just gonna go medium quantities at this and then had this to canvas. Now, I would say what makes this shape quite unique or different. Something to give your mind is the fact that the centre here you could be sitting into the edges of the shape where most of the shape you're gonna be sitting through the centre of the shape where this one is going to be to the edges. So just keep that in mind and he should be fine. Otherwise, that is it on part number 55. If we head here to softwaretraining.co.za I'll see you guys will notice we've got a variety of different Softwares. We do cover, and you can also isolate your search on the top, right? If you do not, however, find the training videos you're looking forward to. Simply go here requested training, video filling in the form. And then we'll do our best to try and make that for you, but otherwise thank you guys for watching and cheers.
