FabriCAM Software P45 Rounded Triangle Rectangle (Part 21) Step by Step Video Tutorial

In today’s shape we are going to be combining a Rectangle with a Triangle and then rounding the top.

This type of part we have already covered in our intermediate mini-series, but this version ups the complexity a bit.

This video is part of a Mini-Series.
Next video covers P48 Advanced Rectangle Circle.
Previous video covered P40 Rounded Rectangle Cut Out.

Video Transcript

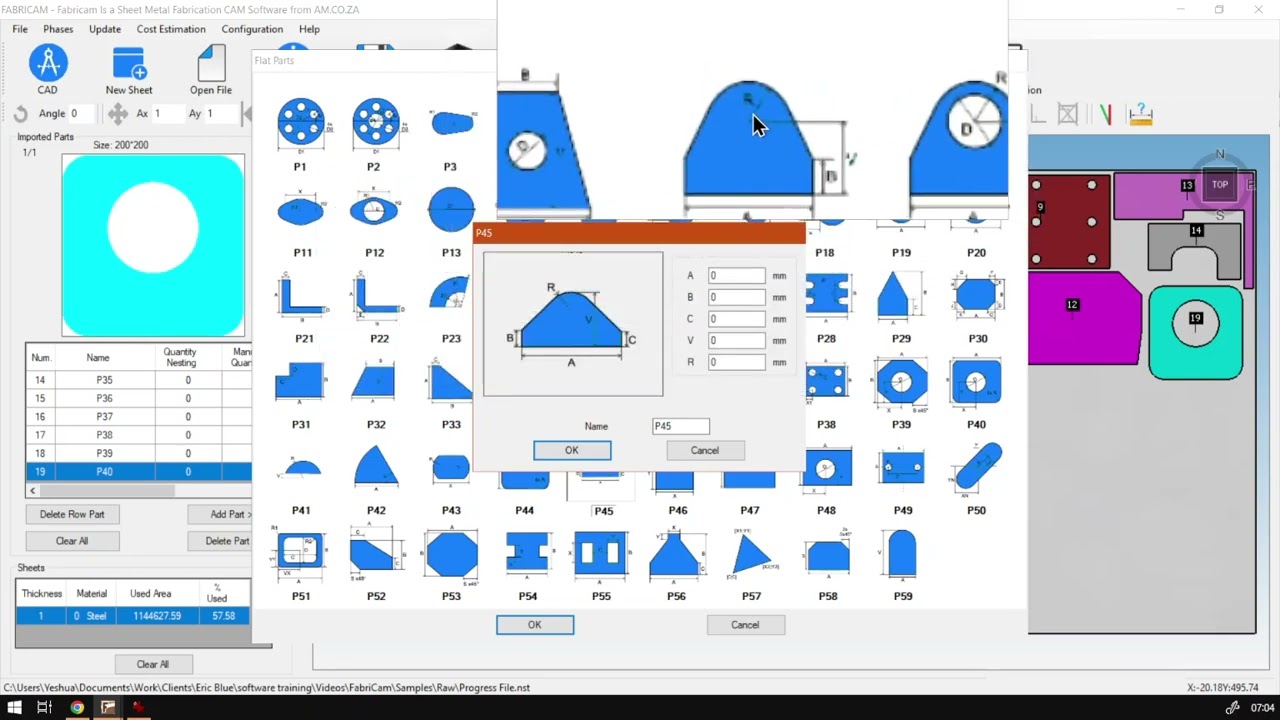

How are you guys? In today's video? We're gonna be looking at part number 45 from our advanced flat parts. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za. We make sure we need to watch problem solving videos, and we also have daily updates. Otherwise, back into the programme here and now, today's part is gonna be pretty much say, advanced version of our part seven or part number seven from our intermediate parts. Now, this part's gonna have a nice little twists, which is gonna make the part quite interesting. Yeah, so let's head into it. I'm gonna go to flat part. Then we're gonna go to part. What is it? 57. I think I said I can't remember and let me just make the whole issue of 45 apologies. So go to apart 45 year and then we just zooming here with a preview. And then, as you guys can see, why at Harvard there to part seven, you can see it's a very similar shape. We've got the rounding, got the edges, and then we've got the width and height. So, yeah, you guys can see we've got the rounding. We've got the edges and then we've got the width and the height. Two things is gonna be key different here. Number one, the hike you can see to the top of the circle, where with Part seven it was to the centre of the rounding, so you can get a bit confusing calculating it, actually, with about seven. And the other thing, that's quite different. You'll notice that the sides as two different options we can set. So we've got a height for B and a height for C. So yeah, let's quickly jump into it and we have a look at it. So I'm gonna go 200 with, and then let's go to V E. I'm gonna make it. May be, but what? 1 80. And then let's go to our rounding, which is our at the bottom, uh, rounding. I'm gonna make about 50 and then, uh, let me look a bit smaller. Good 40. And then we've got here the B and C. So I would like to have two different sizes so we can see it for the tutorial. So, obviously make sure it is not higher than your height to just 1 50. I mean, 1 80. My apologies. So I'm gonna make this one. It's, like a bigger so I'm gonna make this. So I wanna make this side smaller, rather So I'm gonna go 30. And they would be. Every year we go, we try about 80. And there's preview. Let's see what it looks like. Okay, there we go. We've got a nice lopsided shape. It's gonna make sure if something so be Yeah, it's a bit confusing. I made my be larger. But how? My c is larger, so I'm not too sure what's happening there. Maybe they have it in reverse. Let's try change this around now. My Yeah, going to the preview This I should be beer smaller, but it should be the opposite now. Yeah, so I don't know. Maybe it's a little bug or the UI is just likely. Or the preview. I just likely wrong. We're not the preview, the preview dialogue here, but otherwise, I'm gonna leave this, as is. I'm gonna leave the name so you can reference back to it. Manual quantity one, and then we can add this to our canvas. Here we go. We've got P 45 covered tries to squeeze it to me in a corner. Uh, and then, uh, yeah, that is the 45. Like I said, the advanced version of P seven just to recap so we can set the corners in the I mean the side heights individually. And also, it's from the bottom to the top and not from the bottom to the centre of the surrounding, but yeah, Otherwise, we hedge softwaretraining.co.za. Today, guys will notice we've got a variety of different Softwares will recover. And you can also isolate your search on top of right. If you do not, however, find the training videos you're looking forward to simply go. Yeah, requested training, video filling in uniform. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just, uh
