FabriCAM Software CAD Polyline Practical Exercise One (Part 3) Step by Step Video Tutorial

fabricam cad polyline practical

After we have looked at how to work the Polyline Tool and its connect the dots tool, what is next?

Next up lets try getting a bit more familiar with the tool to gain a bit more experience with using it.

This video is part of a Mini-Series.
Next video covers Polylines – Practical 2.
Previous video covered Polylines – Several Points.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

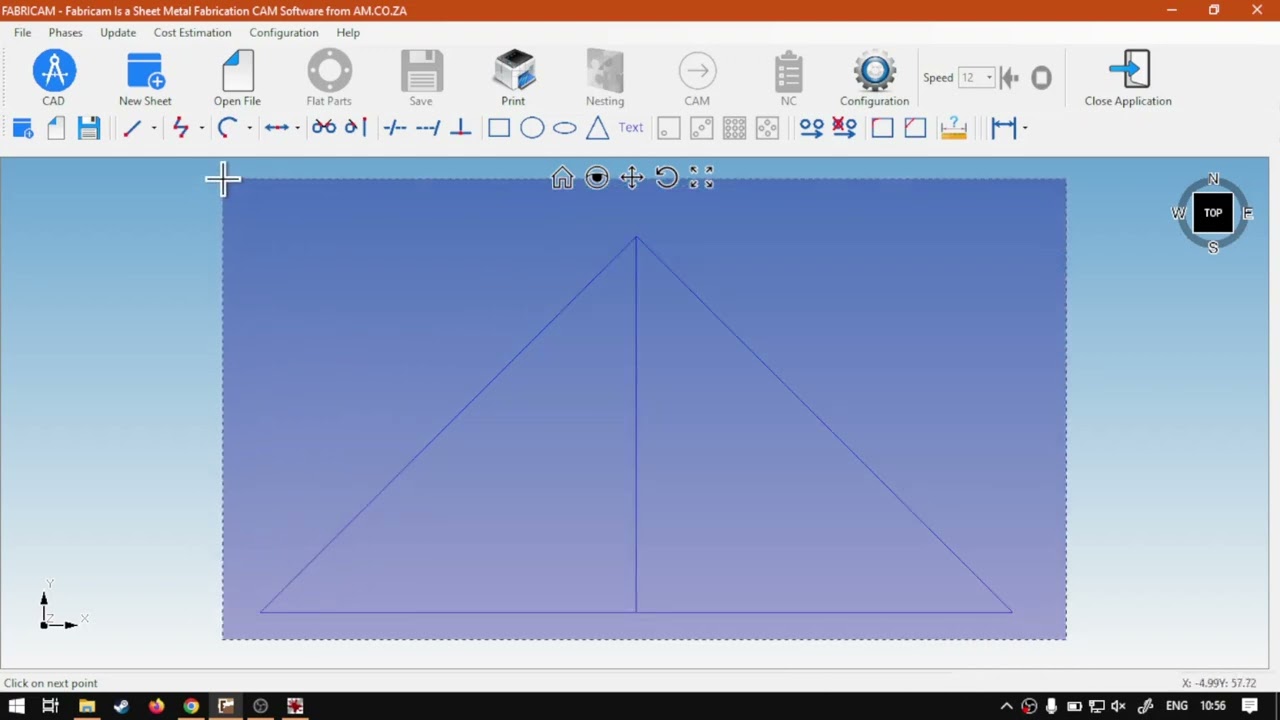

How are you guys? In today's practical video, we're going to be looking at how to make a mirror triangle using the cat beaches. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za Today we make sure an easy to watch problem solving videos. We also have daily updates. Otherwise, if we're going to the programme here, So now we're gonna be running through a quick practical to work on. Or should I say, use some of the tools we've already learned from Cat and the main focus on these practises Practical. Should I say it's gonna be on the poly line? But I am gonna combine a few different tools just to throw you a bit of a curve ball. So now, in this practical, what I want you guys to try achieve is pretty much what you see here a mirror type triangle. But the requirement is you're gonna have to use a line tool and your several points poly line. So with that, you should be able to create this mirror triangle. Now your triangle might obviously look slightly different, depending on the measurement you use. But the general jest or general idea is to have two triangles that create a bigger trying and, uh so if you want, you can pause the video Here, give it a try. If you don't come right, then I'll show you just the process I took so you can get a better idea of it. Wow. Okay, If you have our back and you have tried it and maybe you have not succeeded, then I'll quickly show you just the process I took and, uh, how to go about it. Because this you will be using, uh, potential also to create normal triangles, which you can, but yeah, I like kind of like the idea of doing the two triangles. That makes another triangle. So it's actually three triangles. So I'm just gonna delete this. I'm gonna start with my line tool. Then add here. I'm gonna make a line on the horizontal plane with the second point, so I'm gonna make that 100. Say okay. And there we have our foundation. Always like to start with a good base. Next up, we're gonna go the line tool again, and then this time I want to go halfway in. So we know half of 100 and 50 make both the first and the 2nd 500.50. So they're here, and then I'm gonna lift this 0.50. So the second point of this line, it's okay. And then we've got our base complete or our guides. Now, what we're gonna do is we're gonna head to our poly line tool for several points. Select that. And then what we're gonna do is find our hotspots have on the corners. I'm going to select this one, then the next one and then the last one. Just get that. There you go. And then make sure you right click out of it. Otherwise it will want to create more poly lines. And that's how I went about making it for the simple. But it just demonstrates how you can first of all, use multiple tools in combination and also how much time it Saviour to use something like the several points pollen line. But yeah, otherwise, that is it. On the first practical. If we head here to softwaretraining.co.za guys will notice. We've got a variety of different Softwares. We discover he can also isolate your search on the top, right? If you do not, however, find the training videos you're looking for, just simply go. Yeah, request the training video, telling them any form. And then we'll do our best to make that for you. But otherwise thanks, guys, for watching and cheers.
