FabriCAM Software Computer Aided Design Arcs Option 1 (Part 1) Step by Step Video Tutorial

fabricam cad arcs option

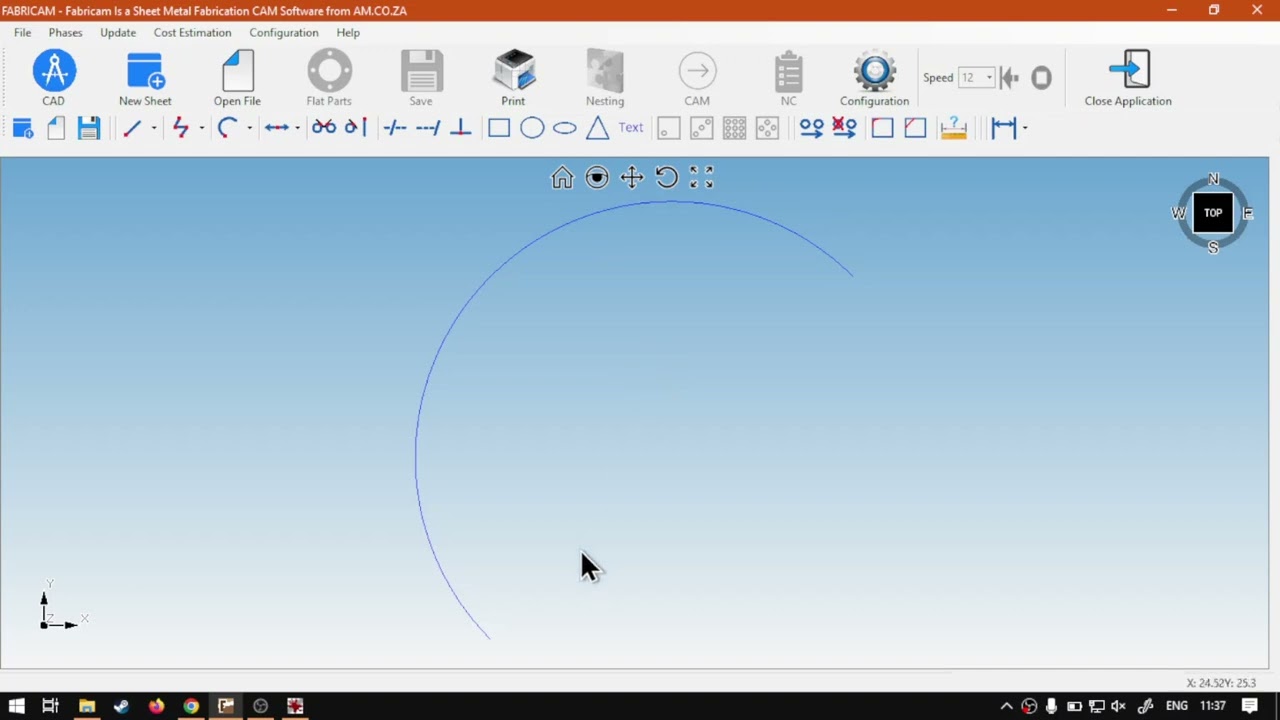

When we looking at the Arc tool we will notice that there are two parts to the default Arc tool.

These two options will determine how the Arcs behave and also their final result.

This video is part of a Mini-Series.
Next video covers CAD Arc – Option 2.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

All right, guys, In today's video, we're gonna be looking at the Arc tool for the cat feature, and this will be for fabric camp software. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure that isn't what problem solving videos, and we also have daily updates. But if we head into the programme so recently we looked at lines and poly lines, Now we're gonna be heading into arcs. Now, arcs is definitely a bit more complicated than the first two, as you have to obviously keep the ark in mind where with Polly Lines and lying to, you basically have to connect one point to another point now from the actual ark. If I had to just zoom in here for you guys, so we have a few different options to choose from. We've got the ark itself, which is our base. Then we also have some connected dot options. We've got our three points and then we've got our two points and a radio. So we're gonna start off with the actual Ark, Select that and then click here now from here. We have two options to look at as well. We've got option one, Option two, but we're gonna be doing optional one today. This is pretty much gonna be also working with a form of radio or should I say global location. So it's gonna try and rotate How? Um, numbers we give it based or should I say around a global location? So if we had to take an arc, let's say our first point, we're gonna leave 00, so it's like a base would start. Then I'm gonna move our second point. Let's make it maybe 100 to the right and 100 up. So I've got that way and that way. 100 now, In the middle year with X, this will be our global locations. What? We want to rotate it around. So we've got 100 100. So I'm gonna make this half 50 and 50 then, uh, say okay and see what we've got here. It's gonna zoom into this, and as they as you can see here, we've got a little circle. So now if we had to observe our location, identify here at the bottom, just work on C. And I think I'll just tell you what we've got. So our first point here is pretty much on 00. If I could zoom in more, I could get it. Exactly. Zero. And if we go right, go to about 100. There we go. And then we go up at 100. There we go. We've got our second point. So that's what we did with that, uh, second x y I mean X and y. Then what? We said we rotated around 50 and 50. So if I go from this 500.15, that's about 50. And we got 50 up. You can see this is the centre of our circle. Okay, This are yet to be completed. A matter circle. This will be the centre point. So with the first option, we pretty much deciding which area on our 30 space to rotate it around. Now, this can be tricky. Sometimes to get the desired effect. If you wanna go the opposite way, you might have to go a negative or start with the other point and so forth. So that can be tricky. So definitely play with it. I'm not gonna be trouble solving here all the different possibilities because there's really almost endless, But yeah, otherwise, that is it. On the first option of the Ark. Like I said, keep in mind that rotates around this global space so you can always use your mouth and use the location identified to see where you want to rotate it around. But yeah, otherwise, that is like I said on the first option, If we head here to softwaretraining.co.za hat you guys will notice, we've got a variety of different Softwares we do cover. And you can also isolate your search on the top, right? If you do not, however, find the training video you're looking forward to simply go. Yeah, request the training video, fill in the uniform, and then we'll do our best to try and make that for you. But otherwise, thanks, guys, for watching and cheers
