TruCUT RDWorks System Work Plats Transform Tab (Part 9) System Work Plate Mini-Series

rdworks transform tab

If you would like to make exact transformations to your shapes and Objects, this tab will be of great use.

There are quite a few ways to go about transforming shapes and objects within the program, but this is by far one of the more precise ways of doing that.

This video is part of a Mini-Series.
Previous video covered Test Tab.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

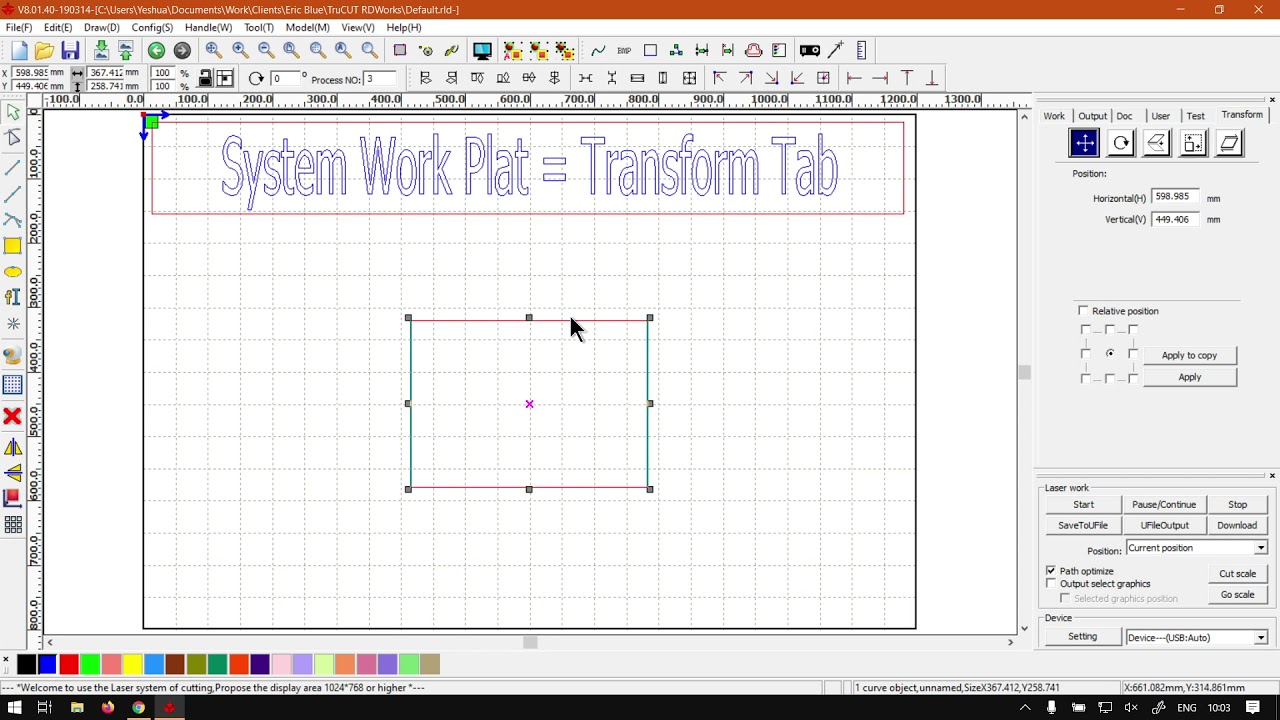

How are you guys? In today's video? We're gonna be having a quick overview of the transformed tab. It's located on the system work plate, and this will be four truck that already works. But before that's a quick intro first, so today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates always way back in the programme here. Now it's just a quick reminder. This is a miniseries on the work or system work plate. Now also leave relevant links in the description. So you guys actually following along now when it comes to transform tab here on the system work plate, um, you can do pretty much all your transforms with this tab, which is quite handy, does work a bit different to your classics, which is either the handle transform or the top transforms. Yeah, as you would have to first click apply every time in order to see the changes happen. Now when it gets to different tools, we have located under this tab because your classic move, which, like on our other tabs on top year we can set the location or with our handles. We can simply move the queue by clicking on the line here and moving it around. We have rotation, which we can also set. And then, um, which that again will be similar to double clicking this and using these rotation arms. Oh, I'm seeing the rotation here on on top here. Then we've got the ratio and mirror, so that's like using the mirror here or setting. Let's say this is locked or unlocked, I guess. And then you can set the ratios, So that's where you can find that as well. Then we have the size that was just scale of the year. Or obviously, if you just use the little note points here to set this size and then next to that, we've got the skewing, which you can't set the skew on top. But if you had to double click, there's no points by the rotation arms between them. You've got your skew amount, so you can pretty much set that there as well and then, lastly, underneath here we have the use anchor points so that you can basically set a form of origin around Which point will your shape transforms equivalent of selling the origin here next to the lock button or anchor put. But yeah, that's quick overview and future. We'll try, go into more depth on how to actually use these features in actual, um, practical videos. But otherwise, if we had to head here to softwaretraining.co.za hat together, you guys don't notice you've got a variety of different Softwares you to cover. And also you can isolate your search on the top, right? If you do not, however, find the video looking forward just to hear. Request a training video. Then we'll make that video for you. But otherwise thanks guys for watching and shears.
