TruCUT RDWorks Measurement Ruler and Units (Part 11) Graphical User Interface Mini-Series

rdworks measurement ruler

When it comes to designs with strict measuring requirements, the Measurement Ruler will come in handy.

The Measurement Rulers can also be a great visual aid to preview the size more accurately for the final job.

This video is part of a Mini-Series.
Next video covers GUI Design Area.
Previous video covered GUI System Status Bar.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

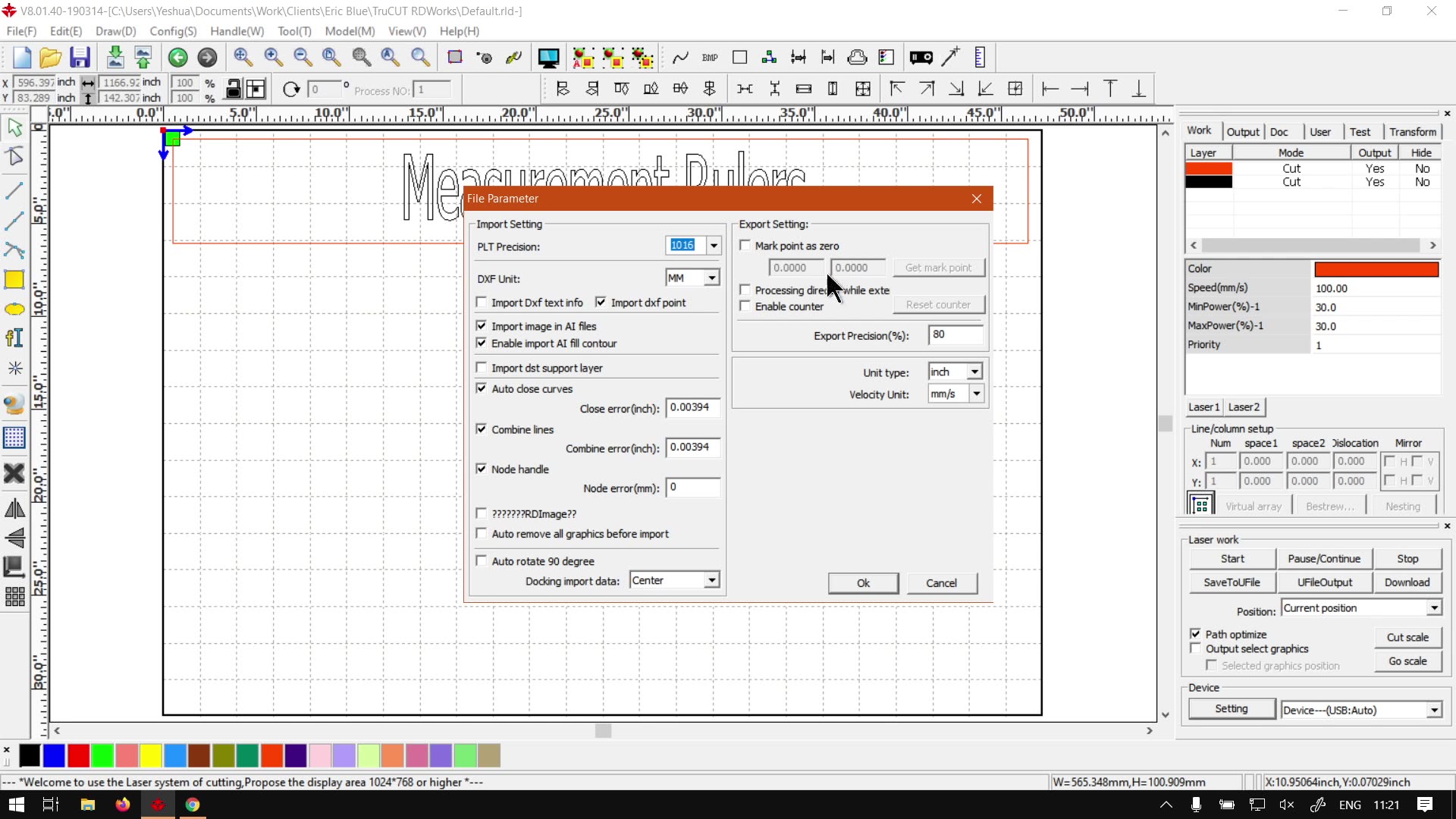

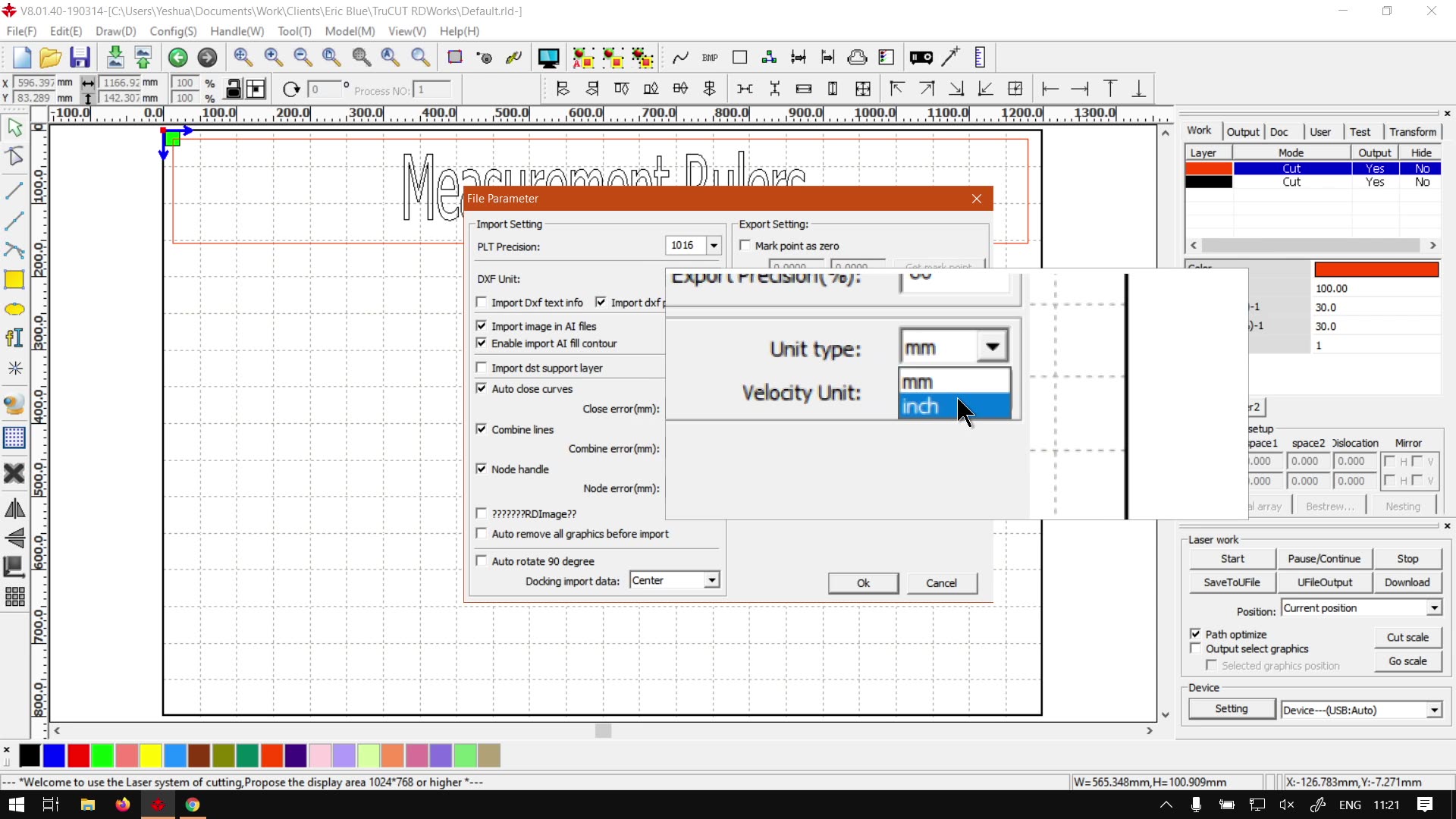

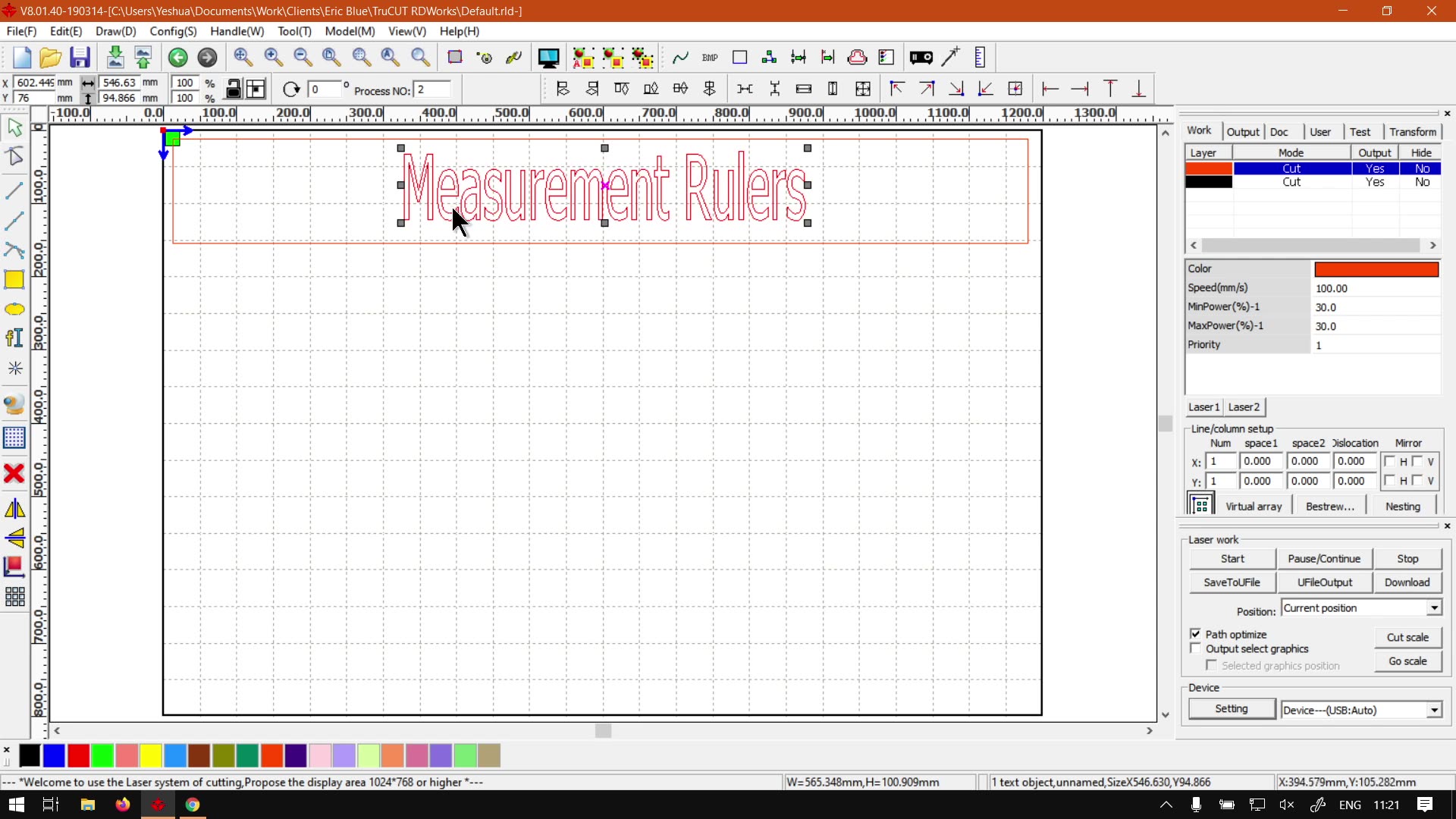

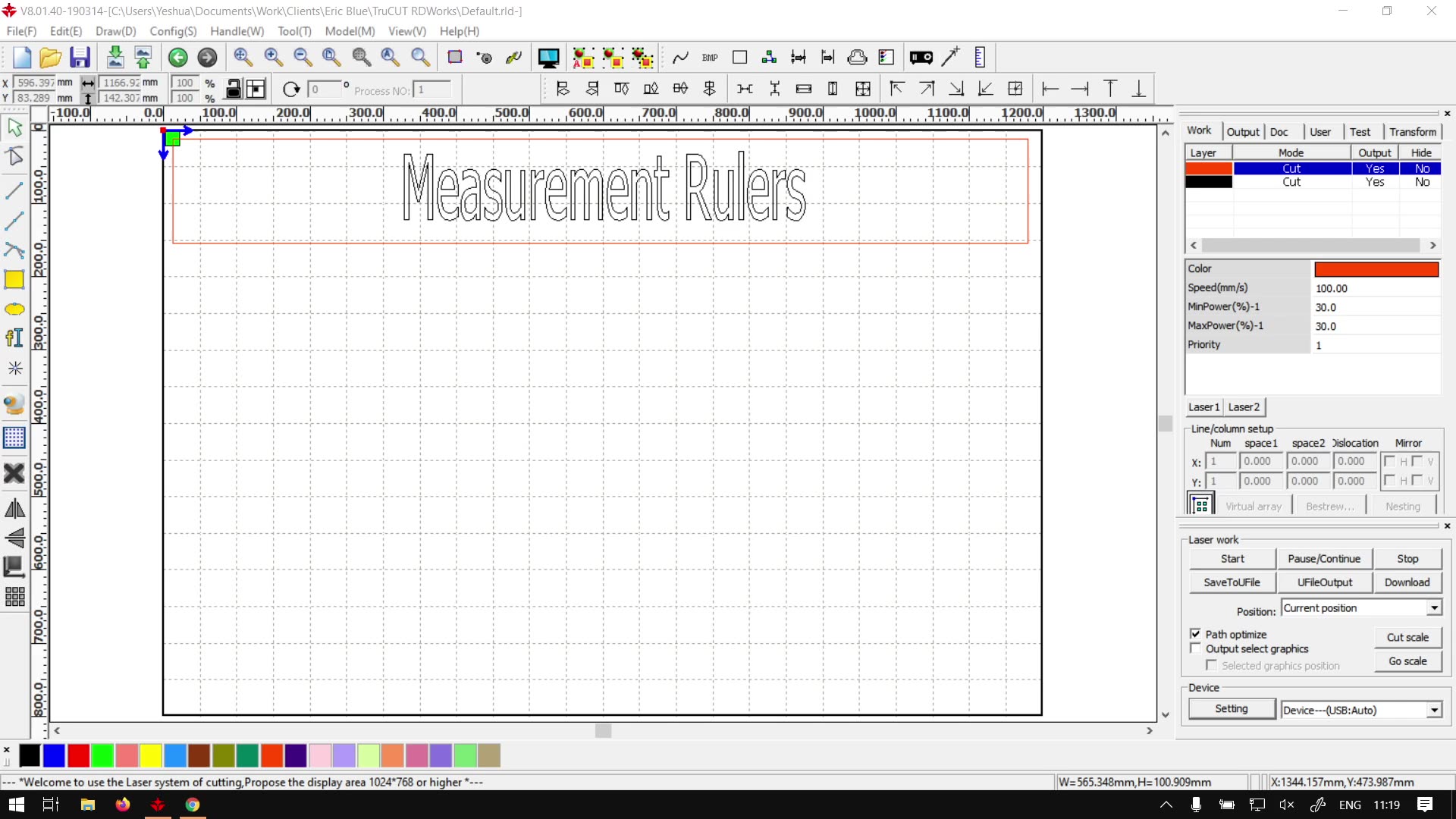

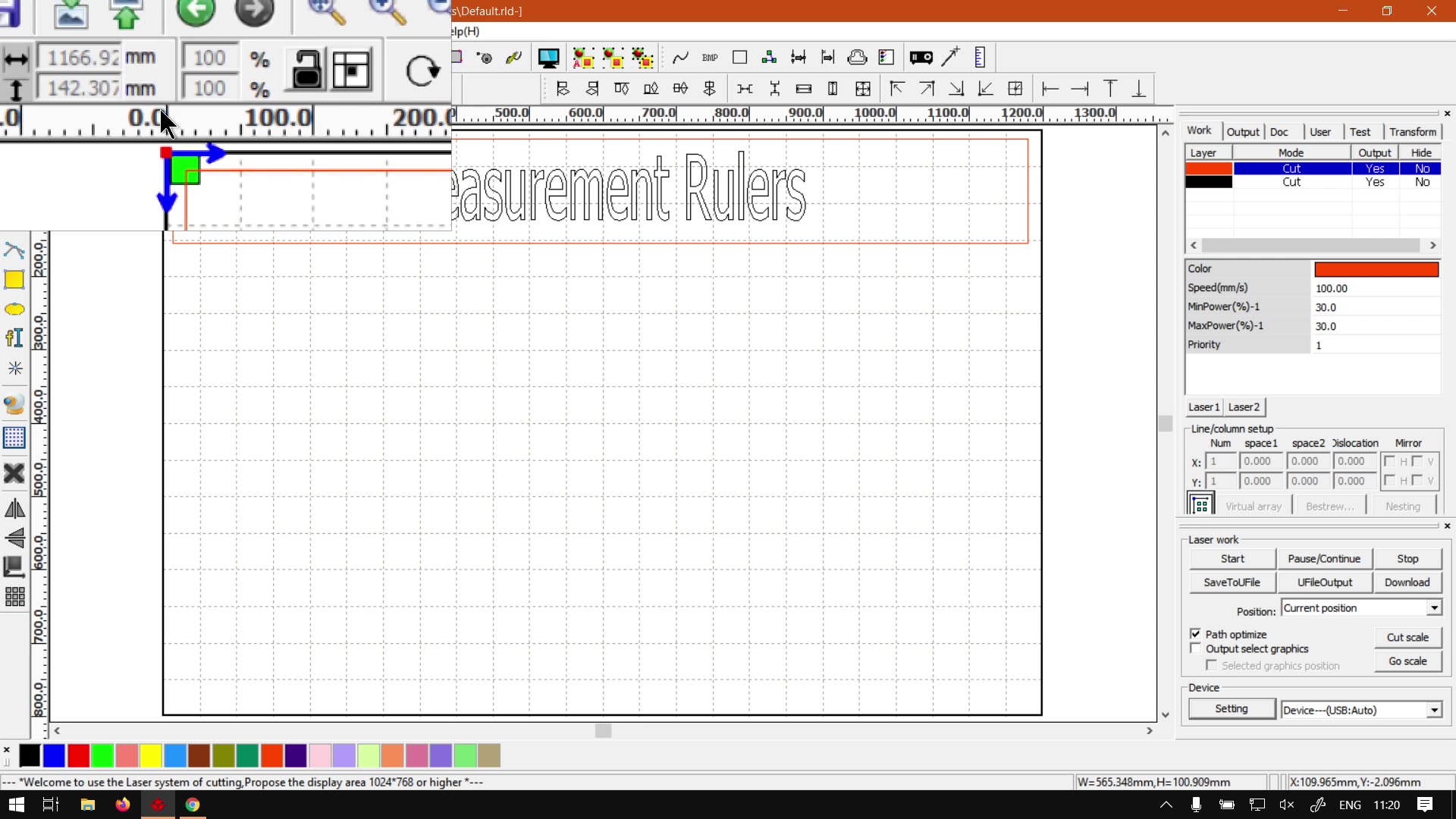

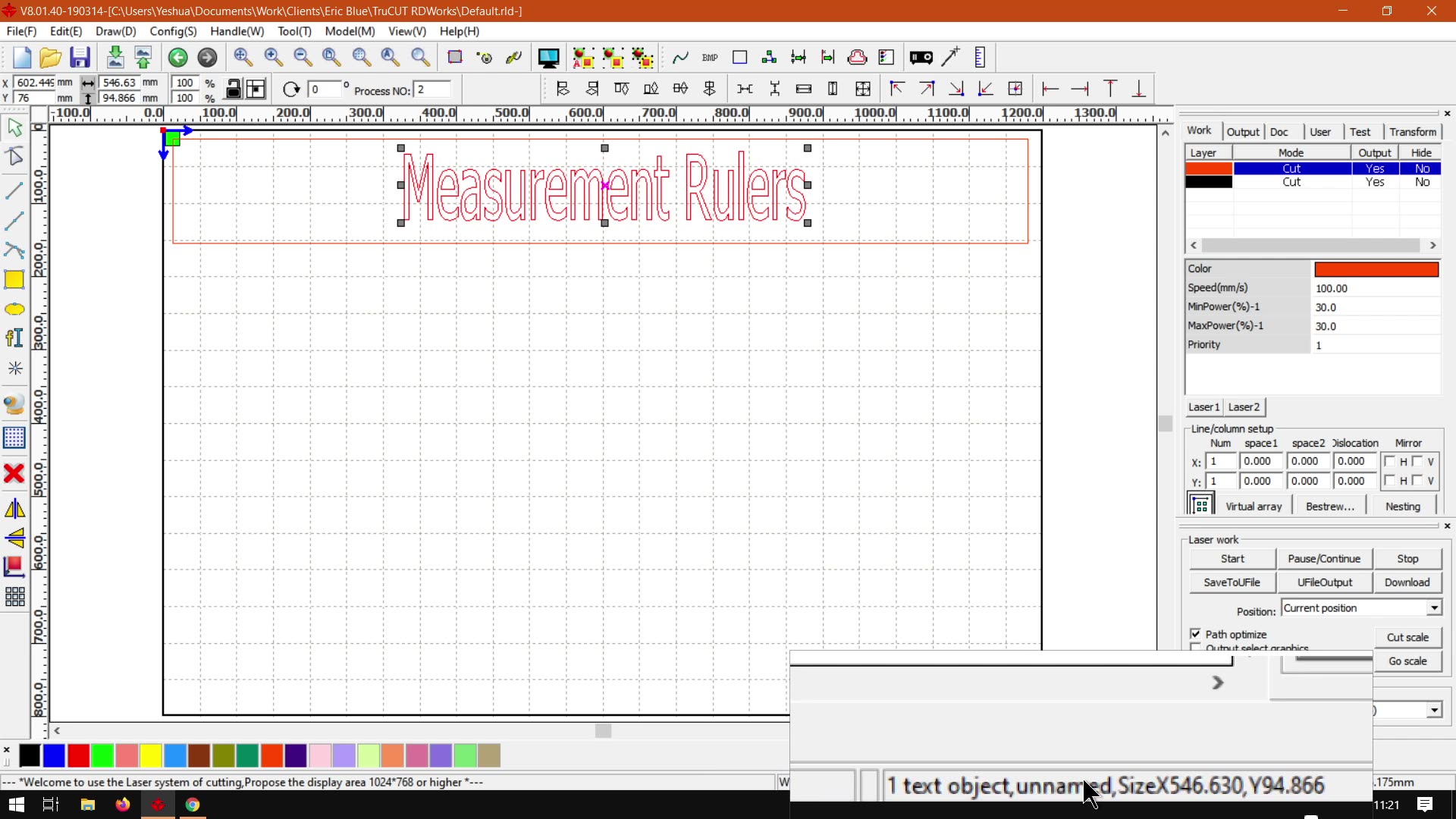

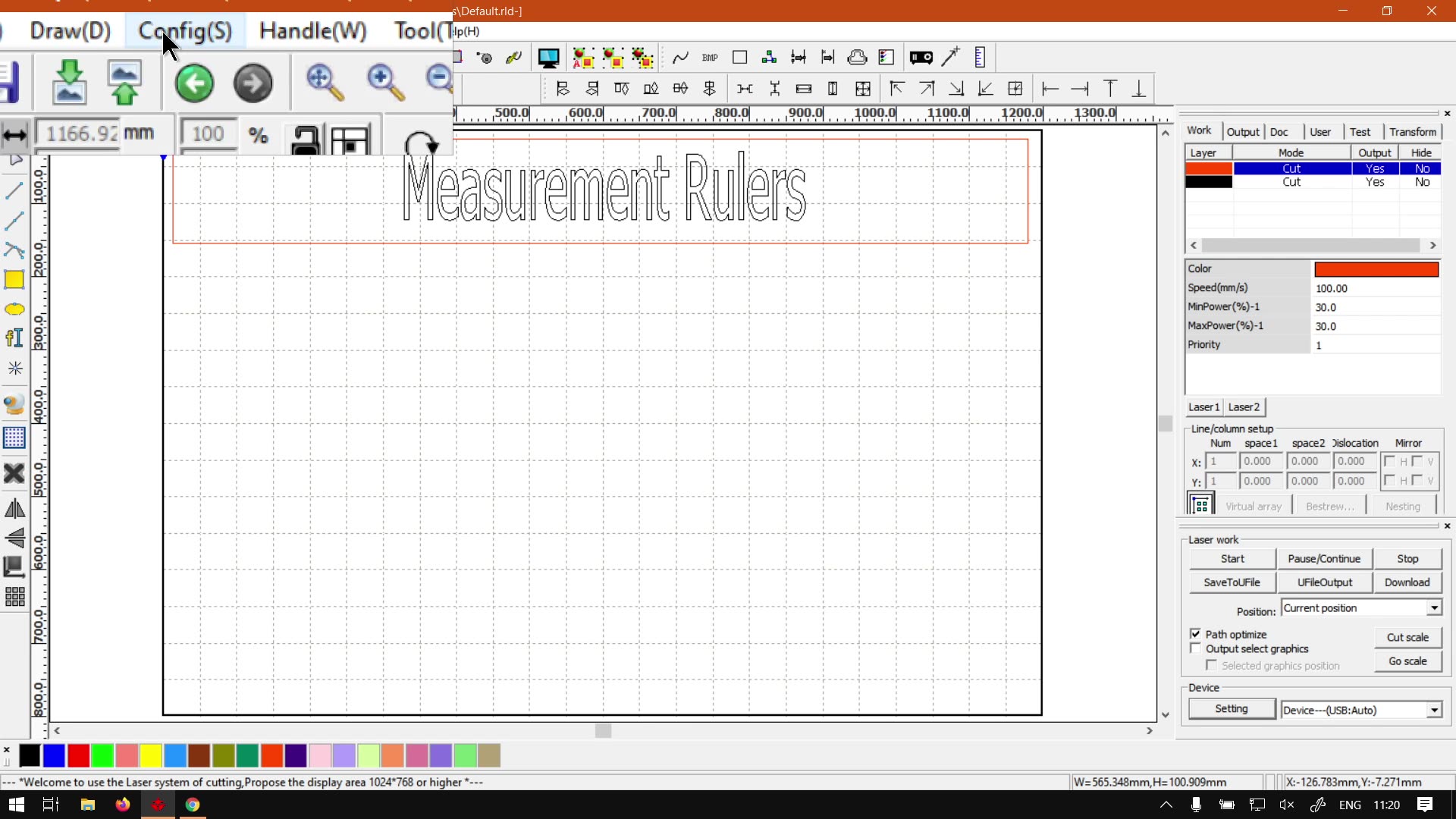

Hi, guys. In today's video, we're gonna be looking at the measurement rulers for True Cut already works. But before that, let's have a working truck first. Mm mm. Yeah. Mm. So today's video can be found on softwaretraining.co.za. They'll say, Ugh, those a day we make sure and easy to watch problem solving videos. And we also have daily updates. Otherwise, back in the programme here. Now, we are trying to reach the end of this many serious on a graphical user interface. I've only got a few more videos to cover or few elements. And then, um, yeah, we'll also put relevant links and description for those that are new so you can follow along. So now, in today's video, we're gonna be looking at the measuring rulers, which you can find here on the left and right. So we've got our horizontal and vertical rulers, and over here, you can kind of see what's the scale at the moment in millimetres. So you get an idea of there's 10 2030 40 so you can kind of work out of 100 and 20 centimetres by 80 is our design math area. So now obviously you can try scale things according to this. And if you want to set this from millimetres two inches, we can do that by going to our main menu on top. Go to conflict, and then we go to file Paris settings. I'm sure if I pronounced that right, But any case, then the top bottom, right. You guys will notice. Today we put the unit type. So now we had changed inches, and then I keep an eye on these measurements if I could go. Okay, we'll say it's just changed two inches. So I'm just going to set mine back. Two millimetres. And there you go. So now, yeah. Starting to also keep in mind, you can view measurements of things here on the bottom as well. So if I just select, let's say this this, uh, this word or the text. Then in the bottom here, if I had to zoom in, you can see here. We've got one text object, a name size, and then get with X. So it's about 54 centimetres and with and about nine centimetres in height, there's also a good way. So instead of now manually moving this one to look Where does it align? You can simply just select it. And then it will tell you the measurements there, kind of. I hope I got my measurements, right? Yeah, it does look right. Okay. Otherwise, yeah, that is it. Then, on the measurement ruler, it's quite a handy visual feature you can use to make sure your design is, um, more accurate to the size that you're going for. Otherwise, we had to endure to softwaretraining.co.za See other. Today, you guys will notice we've got a variety of different Softwares we do cover. And also, you can isolate your search on the top of right. If you do not, however, find the videos you're looking for. You can always go here, request a training video. Then we will make that video for you. But otherwise thanks, guys, for watching and cheats
