TruCUT RDWorks Add Vector Type Graphics to a Library (Part 5) Library Video Mini-Series

rdworks library vector graphics

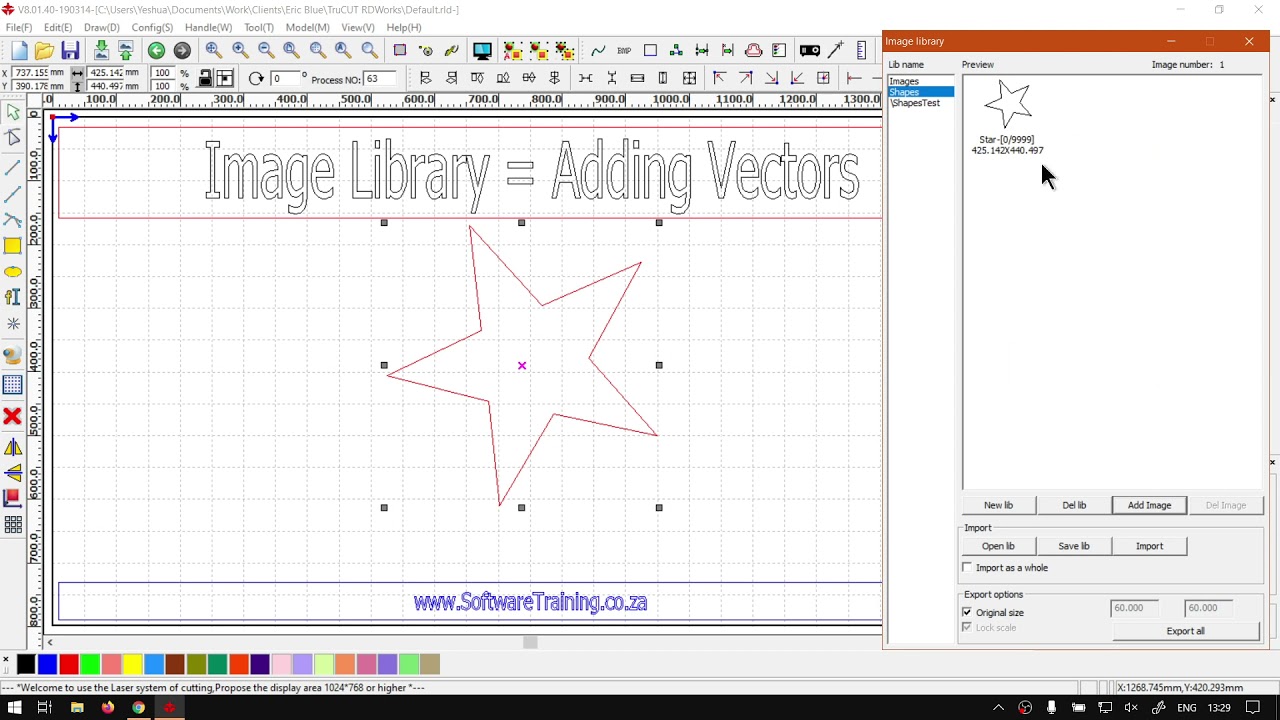

When it comes to adding Vector type graphics to your Library, the process is very similar to Raster’s.

The only thing to keep an eye out for when add the vector graphics, is that you can easily change the path shapes before adding it.

This video is part of a Mini-Series.
Next video covers IL – Import as a Whole.
Previous video covered IL – Vector Shapes.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

All right, guys, In today's video, we're gonna be looking at adding vector shapes to your image library. And this was before true Cut already works. But before that, let them quick intro first. Yeah, mhm. So today's video can be found on softwaretraining.co.za c o dot z. We make sure to watch problem solving videos, and we also have daily updates. Otherwise, back in the programme here. Now, just a quick reminder. This is a miniseries on the image library. Now, we also leave you guys relevant links in description so you can actually follow him along. In the previous video, we had to look at creating some custom shapes and what format to export it as so that you can actually import it into your image library. So I'm just gonna remove these shapes, then open the actual image library, which is on the file image library. Let's move us to the right so we can see the design area. But better now. First things first. I just want to clean up our libraries here, but because every time we import images, as you can see, it makes its own library and it saves it to your file, even though those libraries are not saved and they are saved within your file for me serving like before, we're gonna go delete lip the bottom year with the right library selected Click that say okay. And I just want to do it with all the ones that I'm not going to be using. So we've got now image and our shapes are shapes. Can't really have nothing in images are three, um, images. So that's gonna either be engraving type of things that you like to use option. Or let's say you're creating a lot of shapes. Then you can always first make a library with your shapes and then, uh, that way around as well. So now, like before with our image with our shapes, we want to go to import. And now we want to locate that AI file was safe. So here we can see there are three shapes we've got and then I'm If you don't see it, you can always make sure your files of type at the bottom is said to support it one and then it should see it. Now, with it selected, we can click open and then on the right here. You can see we've got our three shapes. Now, if you've done this, um, this method and you did not go import as a whole, then this will work very similar to, um the how we did the images. So we simply let's say we click the Star Dragon into our image graduates shapes quick head image. Name the star. Okay. And then I start there, and we can just repeat the process with other ones. You can always obviously delete the star there, then something to keep in mind. Let's say I put the rectangle it causes a vector shape. If I go to the note editor, we can actually edit these points now. So, uh, something to keep in mind that Let's say you did by accident. Edit or you edit it or you're on purposely the red thing. You can get shapes, click add image. Then I'm just gonna call this test, and then you will see we've got a new weird shape in there. So sometimes you could buy accidentally change the shape, and then your template will be shaped as well. Or you might throw in a shape and customise it to your liking and then add it. And as you can see, we've got it now there with the new layout. Now, when it comes to the actual import as whole, we will cover this in another video I'm seeing. Our video is running a bit later, A bit long should rather say so. Not to bore you guys with too much in one video. But in the meanwhile, if we head here to softwaretraining.co.za c o dot z a. Guys will notice. We've got a variety of different Softwares to recover, and you can also isolate your search. And that's not right. If you do not, however, find the training videos you're looking forward to request a training video filling the meaning form, and then we'll do our best to try and make that for you. But otherwise, things guys watching and choose
