TruCUT RDWorks Importing the Traceable Background Image (Part 2) Tracing Images Mini-Series

rdworks background image setup

When it comes to the process of importing and setting up the background image, it is rather simple.

If you have worked with the normal import tool before, you will notice that they are just about the same thing.

This video is part of a Mini-Series.
Next video covers Setup Scale.
Previous video covered Overview.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

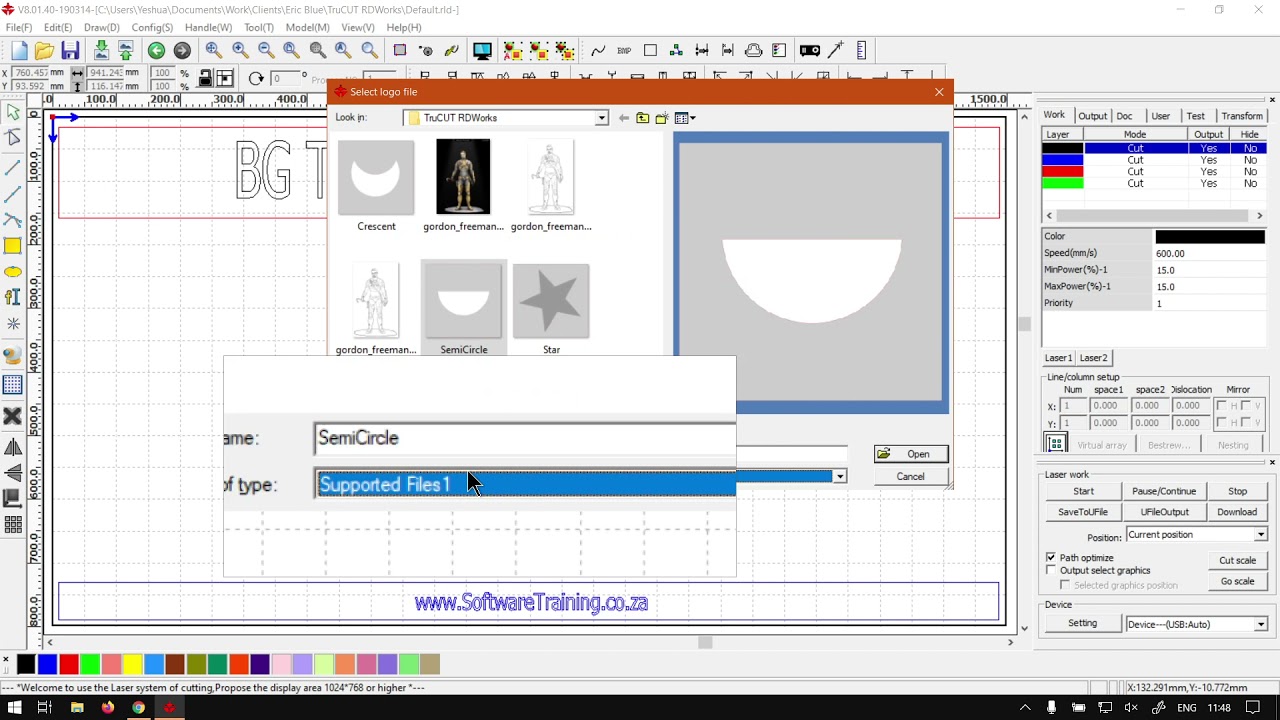

Hi there, guys. In today's video, we're gonna be looking at importing and setting up the background image feature, and this will be for that already works. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za c o dot z. We make sure we need you to watch problem solving videos, and we also have daily updates. Otherwise we head back in the programme. Yeah, Now, just a quick reminder. This is a miniseries on the B G. Tracing or also background image tracing. So, uh, like I mentioned before, we have covered tracing another method, um, went into more depth with using actual tools where now we're just gonna be looking at using the background import feature. So now right off, we obviously need an image that we want to trace. So to do that, we go here to our main menu on top and go to file. You can also press old plus F to open this menu. Then we'll go down to import and you'll see if we go even lower. It's got here, um, import background. So when we select this, this will be for importing the actual background image. So then, on top here, which I say this dialogue boxes for importing. If you've covered some of the importing videos before, you should understand this. But otherwise this top years for quick navigation and view. Then we've got our actual images, and then we've got here the file. It selected its name and then underneath that, we've got files type, which is a supported file. So if you export your imaging, do not see it there in the right folder. Just make sure you select the right for making here. If you look at the extension well, you got to support it. Falls one on the right here. We've got a preview and then a little preview button. Then continue. Simply say import or open. And now you will notice that the images here smack in the centre. It might vary on your speaking on your setup, but we'll be looking at that now. So the next up we want to go to our main menu again. But this time to confess, like or can fix if you add the actual shortcut. So then we open that and we go to page settings under page settings. You on the bottom, right? We've got all the settings for importing or the input image. First of all, we've got the actual location. So, like I mentioned in the previous video is a bit limited, saying that you cannot have, like, moving around manually, so you have to choose your position. So let's say top right top left. That's like, Okay, now you can see the image on the top of the left there. So we go back to con fake page settings and we're gonna just this. I'm gonna keep my incentive. Then under that, you will notice the clean background. Now, this is important. If, um like we mentioned before, if you have a new file and it is no longer or when the file is still there because it goes across different files, then you will have to use that setting for clean background. So we got config page settings. We click clean background. You will see the image is no longer available, so let's just quickly add that back and forth background image. Select the image, click open, then you in the next video. We'll be looking at the scaling of that. So if you wanted to re position and scale your image. But in the meanwhile, if we had here to softwaretraining.co.za c o dot z You guys will notice we've got a variety of different software to recover, and also you can isolate your search on the top of right. Just type what you're looking for a magnifying glass button. Otherwise, we do not find any results you're looking forward to always go. You requested training video well in the uniform and make sure you let us know which Softwares for Then we will do our best to make that video for you, but otherwise thanks, guys for watching and cheers.
