FabriCAM Software Intermediate Flat Part P12 (Part 7) Step by Step Video Tutorial

The current shape that we are about to cover is a more advanced version of the one we did in the previous video.

Unlike most other combination of shapes, with this one if you scale the inner larger then the outer you will not get two individual shapes.

This video is part of a Mini-Series.
Next video covers Intermediate Flat Part P15.
Previous video covered Intermediate Flat Part P11.

Video Transcript

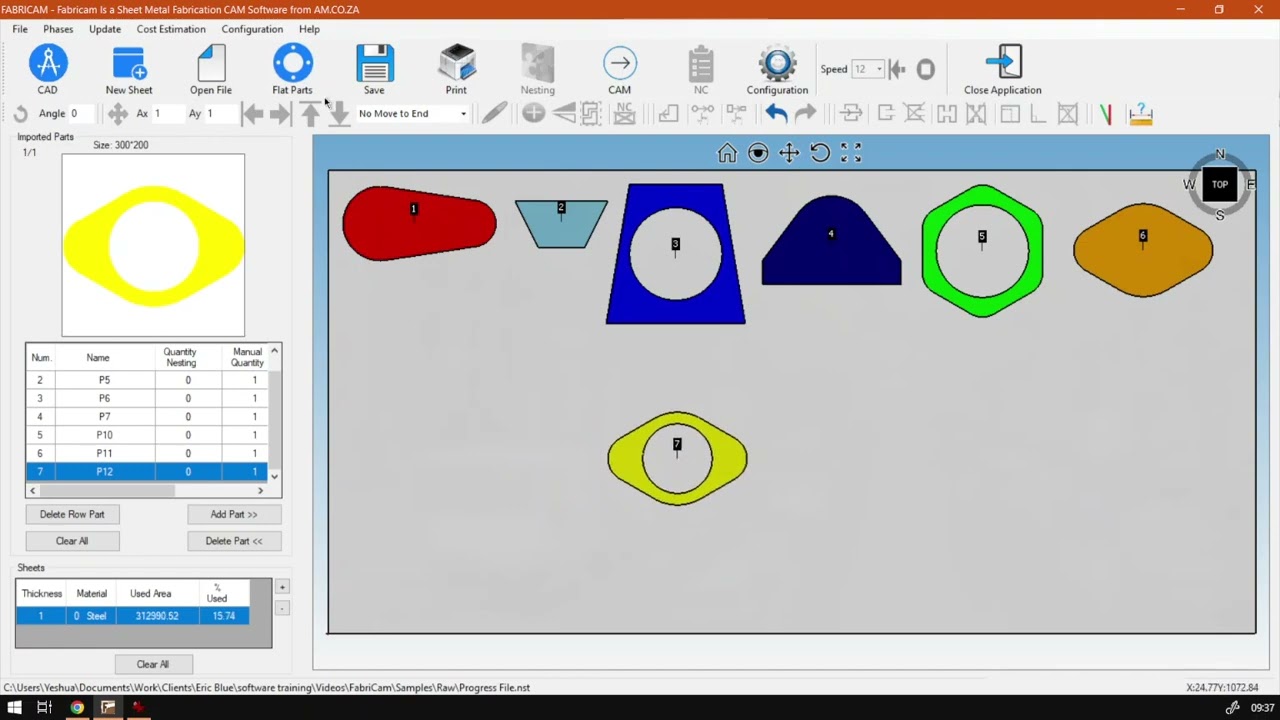

Hi there, guys. In today's video, we're gonna be looking at your intermediate parts, and this will be part number 12 from our flat part. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make sure needs to watch problem solving videos, and we also daily updates otherwise back to the tutorials and that now part 12. In many ways, that's the part we've just covered with, obviously the exception that it's got an actual value, which we can set. It's a bit like Rx waggon, but instead of, uh, they're actually going from 2 to 3 parts of values options. Now this one is gonna go from 3 to 4 values. But yeah, otherwise, if we head into it, so the shape it should be very familiar with, because we just did the primitive vision of it. So if we go to be 12, we select this now, from this little, uh review, we can see we've got three different values. Got an ex still are one or two, and then a new one D for the inner diameter of the circle. Now, uh, there is something that you can do with this, which is quite different way with another shape. When we did it, we had quite a different result. So I will explain now. I'm just gonna just quickly make a normal base one. So let's make this one Are 100. Make this 1 50 or two. And the d. Well, maybe make, uh, Let's go about 1 50. Okay. So Okay, look at the preview. Okay? It looks good. So quantity one at and then let's quickly add the canvas so we can just compare the So now I'm gonna go to flat parts again to p 12 again. Now, let's go. The same for 201 150 something to keep in mind. If I had to get 200 year these two values or the way they measure them, it's not exactly the same. So we've got 200. Okay? Never mind. I stand corrected. Earlier when I tested it, uh, it was still a separate size. So clearly these two are the same, but I guess that would mean, um are one is quite relevant as well. You have to change this value. Let's say maybe 21 50. Say Okay, now you can see now something. We have a ring inside of a ring. So this the D is kind of a combination of your X and R one. So it doesn't just take your X value. X, I think in many ways is a combination of these two as well. Yeah, I'm gonna go back to 100 just for our sake. Now, what I was covering earlier when I was saying is that this doesn't quite work the same as what we worked through the previous shape. Where what happens when we made the inner diameter larger than the outer one. We ended up getting two different shapes in our actual list here, where if we do this with this one, So I'm gonna go extreme, maybe 400 just to make sure we're going out. And we can see here now, in a diameter jump right over our other shape. So I'm gonna go one quantity. Add now, Like I said, last time we got two shapes. Whatever This one, we actually get one shape. So this is also a great way where you can actually make a more unique shape. So you can actually have a circle with this shape on the inside, which is, uh, yeah, it's pretty cool. You know, I'm not sure why the other shape didn't do it. Maybe they had more limitations. Um, but yeah, this is how this one works. So once again, just a quick recap. So we got flat part part 12, and then with this one makes it different is we have an extra, um, dimension here, and it would look like it works relevant or relative to these two. So just keep that in mind, but yeah, otherwise, that is it on about 12 or part number 12. So I would say it's not about 12 of the video. It might actually be by now. And, uh, yeah, otherwise, in the meanwhile, if we head here to softwaretraining.co.za. Guys will notice. We've got a variety of different Softwares we do cover. And you can also isolate your search on the top of right. If you do not however, find the training videos you're looking forward to simply go. Yeah, request the training video, filling them uniform, and then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and just
