FabriCAM Software CAD Perpendicular Two Entries (Part 1) Step by Step Video Tutorial

fabricam cad perpendicular two entries

When using the Computer Aided Design Perpendicular Line feature we will be using it with two entries.

The order in which you select these two entries is not that important, but when it comes to the hotspots that will be.

This video is part of a Mini-Series.
Next video covers Perpendicular – Practical.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

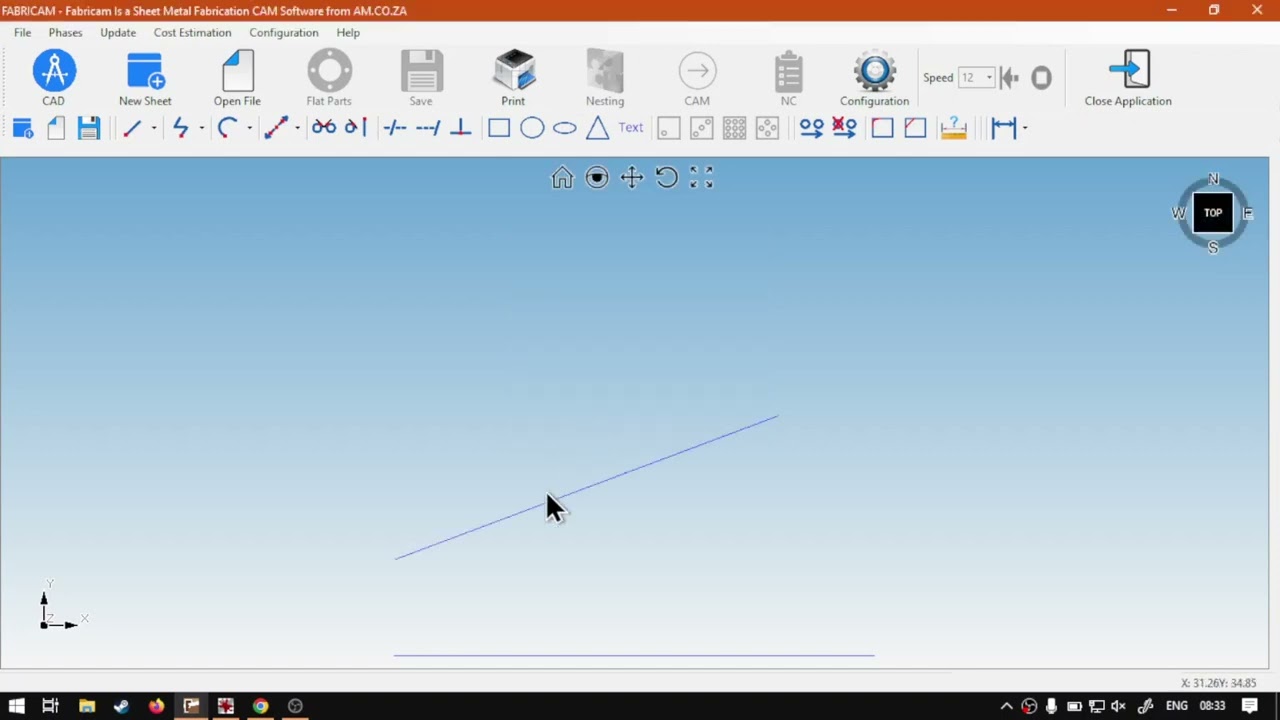

are you guys in today's video? We're gonna be looking at feature for the perpendicular to interest now. Yeah, that's gonna be for the cad feature. But before that, let's have a quick intro first. Mm. So today's video can be found on softwaretraining.co.za z. We make sure that easy to watch problem solving videos, and we also have the updates. Otherwise we head into the programme here. I'm just gonna remove this from our previous tutorial. So today we're gonna be looking at the like, I mentioned the feature perpendicular, and then it says the two entries. So there's this icon over here, um, next to the square or rectangle. So now, in order to use this, I'm just gonna quickly add two lines just so you guys can get an idea of what's happening. This one. I'm just gonna go 100 on the horizontal, and then this next one, I'm gonna have a bit of an offset, so I'm gonna make the height, say about 20 and then I'm gonna go this one about 80 to the sideways, and let's go about 50 up. There we go. We've got our two lines just centre this nicely so we can see what's happening now. In order to work this feature, you're gonna have to select both your shapes or your lines and then use the hotspots. But you'll see it works slightly different. Like if I select this option and I go to a hotspot how it's gonna work. If I click this hotspot of a year at the bottom, it's gonna make How can I say it's just demonstrated? So if I click here, it will make the perpendicular line to that point from the perpendicular to this line. So it's the one you click on. Its gonna become the Origin point, another origin point, a destination point. But the perpendicular line is gonna be from other shape. So if I just select these two again, click on it and let's see uh, like the top one this time. Now you can see it's a straight line in a vertical access because I clicked on this point, so it's taking the angle of this line, so that is something to keep in mind. It can be confusing at first, but just keep in mind that you want to you want to like to be perpendicular. With this line, you have to click on the opposite lines. Point that you want to do it too. So it's a handy little tool. You can obviously use something like that as a guide if you wanted to remove it, and it can get quite complex with the outcome. But yeah, otherwise, that is it on a perpendicular line. 22 entries. Uh huh. Meanwhile, though, if we had get softwaretraining.co.za hat you guys will notice, we've got a variety of different Softwares we do cover, and you can also isolate your search on the top of right. If you do not, however, find the training video you're looking for, just simply go here, requested training video, filling the uniform, and then we'll do our best to try and make that for you. Otherwise, thanks, guys, for watching and cheers
