FabriCAM Software Auxiliary Vertical Lines with CAD (Part 2) Step by Step Video Tutorial

fabricam auxiliary vertical lines

After we had a look at the Horizontal Guides Lines we will be having a look at the Vertical ones as well.

With the Vertical Guides Lines you are able to combined them with the Horizontal Lines to create guided borders.

This video is part of a Mini-Series.
Next video covers Auxiliary – Perpendicular Lines.
Previous video covered Auxiliary – Horizontal Line.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

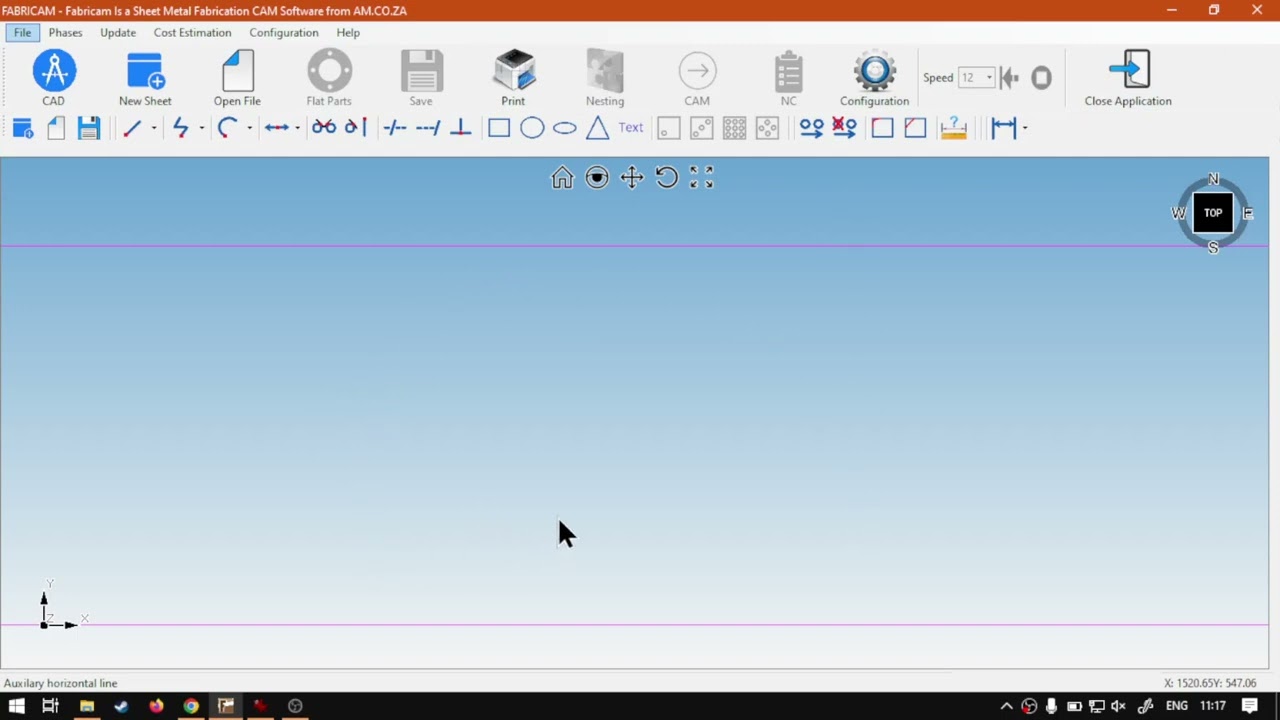

other guys in today's video, we're gonna be looking at our axillary option that is, within our cat feature, and this will also be for the vertical line. But before that, let's have a quick intro first, so today's video can be found on softwaretraining.co.za z. We make short and easy to watch problem solving videos, and we also have daily updates always went back into the programme here. Now, today's video should be shorter than the previous one saying that we're gonna be looking at the same feature just on a horizontal plane. I like I mentioned. Let's say you wanna take a design and you wanna limit it within a space that say you're looking at around 500 by 500 design. It could be broad. I could, obviously, depending on your requirements, but because the sample I'm gonna do that now. What I wanna do is add some, um, once on a vertical plane to define the horizontal space. I'm gonna go 600 just so that we can have a slight better or breathing room in our design so we don't have to work exactly on the lights. So now What I'm gonna do is I'm gonna go to the actual feature for the guide and then I'm gonna go the vertical line. Click that and then the first one I'm gonna add zero Or what you can do is you can also go minus 300 add 300. So if you want zero in the centre, But I like zero being bottom left. So I'm gonna say okay, because Zuma to find that line. There we go, and then we add another one quick. So I'm gonna click on the same button and then make this 1 600. Now we should have a nice square for working space, and we know while we're working, anything that happens within this space is kind of controlled, and we don't easily go out of it. So that way, also, if you place a space and it's not in this, you kind of have an idea that it should be adjusted. But yeah, otherwise that is it on the vertical auxiliary or guides. And, uh, if we head here to softwaretraining.co.za y, you guys will notice that we have a variety of different Softwares. We do cover. You can also isolate your search on the top. Right, Um, if you don't find what you're looking for and then we also have this nice little I'm sure I can isolate the search on the top. If you're looking for something specific and if you don't find what you're looking for, just go. Yeah. Requested training, video filling the form. And then we'll do our best to try and make that for you. But otherwise thanks, guys watching and cheers.
