CorelDraw RouterCAM Plugin CNC Tool Change Preview (Part 1) Step by Step Video Tutorial

routercam atc preview

Now when it comes to the CNC Tool Change feature there are a few important things to know when working with it.

At first when you look in to the Topic of tools change it could seem quite complicated, but once you understand how it works it is not all that complex.

This video is part of a Mini-Series.
Next video covers CNC TC – Scene Setup.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

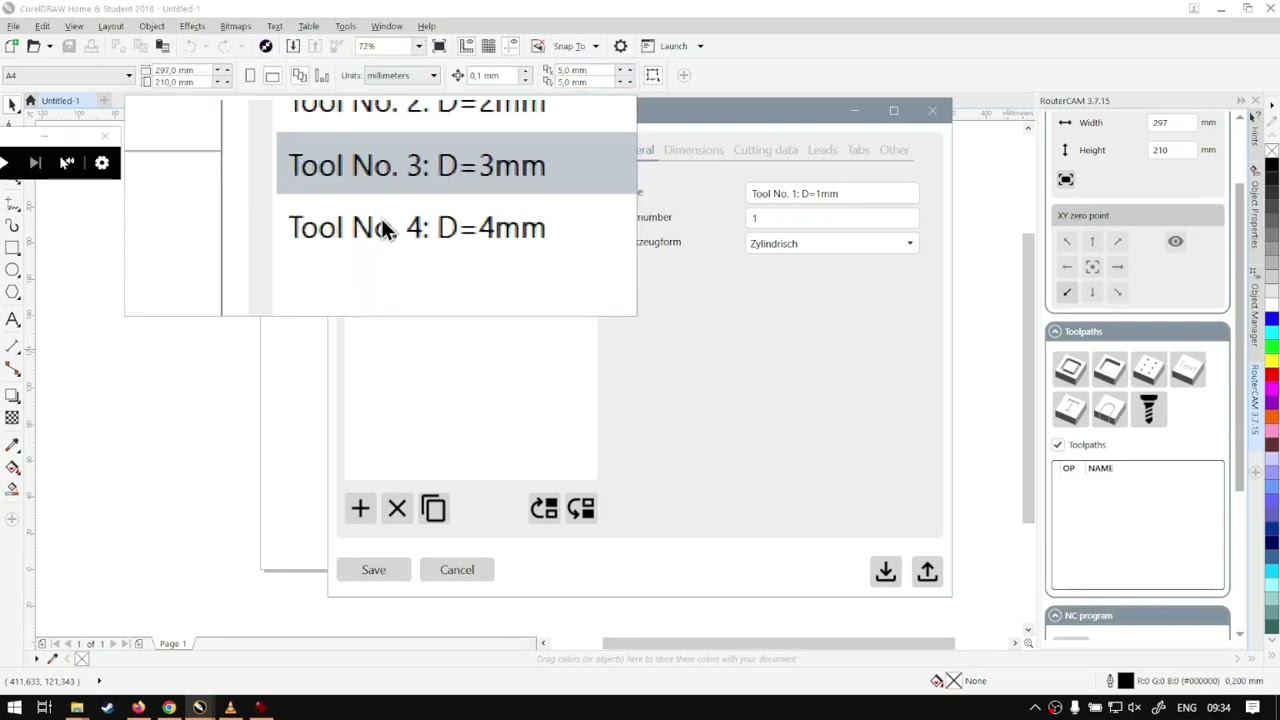

Alrighty, guys. In this next video with R to Cam, we're gonna be looking at the tool change feature or how that works in the programme and to the C N C machine. But before that, let's have a quick intro first. So today's video can be found on And we make short and easy to watch problem solving videos. And we also have daily updates. Otherwise, we're into coral drawers. And now with our actual, um, router cam plug in open, we're gonna be looking in this mini mini series like I mentioned at how to translate or the do the tool change using G code. Um and then just look, what does it look like when it actually translates it to the actual programme And, um, also the machine? How is it relevant to that? But yeah, So, first of all, we obviously under our two paths here, we've got our, um, tools. So this might vary depending on the amount of tools what's set up and the types. But this is gonna be more of just an overview. Quick, um, where what's located? And then we're gonna run into depth on how to actually do it, how to set up the parameters and all of that. So now we obviously have our tools here. We can see we've got four of them from 1 to 4 and then, uh, the diameter as well. So you can obviously set this up. This is gonna vary depending on what you're doing. But right now, this is what we've got. So this is the actual tools in the plug in for the programme. And then if you had to see in the machine here, this is pretty much how it's going to translate it, and then it's gonna go in your machine and select the next tool from the tray. So, um, the order of layout and all of that is gonna be quite important. But, um, like I mentioned, we will be covering covering that in the mini series. But before we move on, if we head here to You guys will notice we've got a variety of different Softwares we do cover, and you can also isolate your search on the top, right? If you do not, however, find the training videos you're looking for. Just simply go. Yeah, request the training video, Fill in the mini form and then we'll do our best to try and make it for you. But otherwise thanks, guys, for watching and cheers.
