TruCUT RDWorks the Node Editing Draw Bar Tool (Part 2) the Tool Draw Bar Mini-Series

rdworks node edit tools

If you would like custom type shapes and objects, then the Edit Node tool will be the tool for you.

When you would like to make any changes to the nodes, paths or shapes then you will have to use the Edit Node Tool.

This video is part of a Mini-Series.
Next video covers Path Types.
Previous video covered Select Tool.

Training Video with Voice-Over ( Sounds ON ), Please Subscribe

Video Transcript

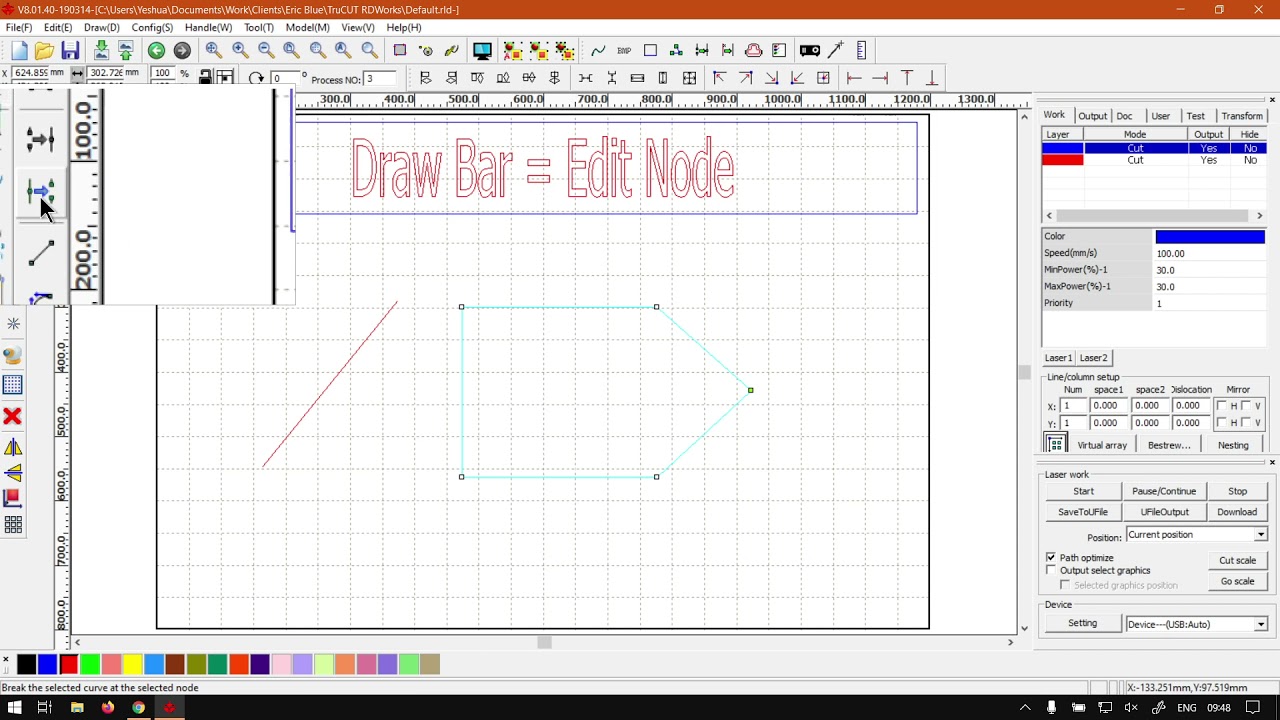

hi guys in today's video. True, that already works. We're gonna be looking at the edit note tool, which will be located on your draw bar. But before that, let's have a quick intro first. Mm mm mm. Mhm. So today's video can be found on softwaretraining.co.za c o dot z A. We make sure that easy to watch problem solving videos, and we also have daily updates. Otherwise, back in the programme here. Now, just a quick reminder. This is a miniseries on the draw bar, which is this bar here on the left. And I will also leave relevant links in the description so you guys can actually follow along for any reason. You do not see your body or can always get your main menu on top view, and then we look at the draw, but it's got a little right mark. So if it does not like below here, you just simply click on it. I should bring it back now when it comes to the added no tool, which is the second tour. If we have the selected, you'll see it opens up this little extra panel with extra settings. Now, the note or the edit node is a tool you're going to be using to edit any form of path and so forth. So if we have this rectangle or square, you can see we've got the nodes over here. If we had to make just a straight line and selected with our note edit tool, you'll see we also have the same points. So now with this, too, we can modify and customise these. Now, this is gonna be more of an overview of the no edit. All, um, we'll try to go into more depth in the future on how to actually work it. So now if we simply had to just go down the list of extra options you get. So, first of all, we've got the ad note so you can use this to add new notes. We've got the lead note. And yeah, but on the edge just to head. Sorry. Like if you had to click here on a line just with your normal, um note edit tool Select. You'll see it gives us this red, little or no point. But if I had to kick off, it is no longer there. Now you'll be using that then combined with add note. As you can see now, this thing is blue. So now if you have to click that, you'll see it adds a note. So it's just a little side note in case you were trying to add a note and you realise it's not working the next up here. Underneath that, we've got combined notes and break notes. So if you have a selective note, you can break it with this one. Or what you can do is if you've got an open path. So basically a path that has not joined like this, you can select two nodes and then simply, um, join them again. That's what those ones do. Then, underneath that, we've got lined, curve and to lie. So what this will do is the one will give you, uh, turn your curve into a straight line like this, and then with another one, we can actually turn it into like a curved line. So if you want to make you need shapes, that's what those two are for. You can obviously edit them, so I'm not sure I'm not getting this point doing that all day. Any case? So then Um, yeah, there we go. So, yeah, and then obviously you can turn these notes back into straight lines using those options, but yeah, that is it is kind of overview on this. Like I said, we're trying to do more depth on how to actually use it. But I think it was that kind of follow you saw there. You should already be able to get up and running with it. Otherwise, we had yet to softwaretraining.co.za. I'll see you guys will notice. We've got a variety of different software to cover. And also, you can isolate your search on the top, right? If you guys do not, however, find the video, you're looking forward. Just go. Yeah, I request the training video. Then we will make that video for you. But otherwise Thanks, guys watching and cheers.
