FabriCAM Software P58 Rectangle with Upper Chamfer (Part 28) Step by Step Video Tutorial

Last but not least we will be looking at Flat Part P58, once again another Rectangle base shape with some Chamfering.

This video is part of a Mini-Series that covers all the Intermediate Flat Parts available.

Previous video covered P57 Intermediate Triangle.

Video Transcript

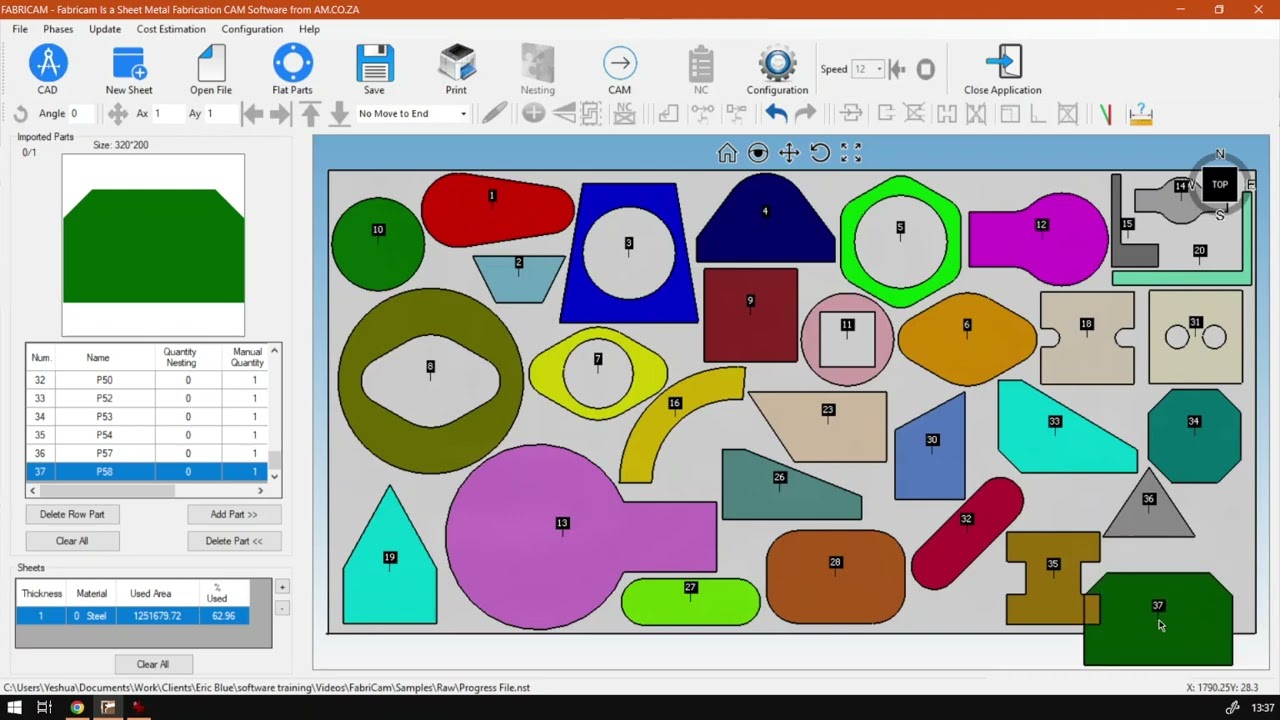

Yeah. Alright, guys, in today's video, we're gonna be looking at part number 58 from our intermediate flat parts. But before that, let's have a quick intro first. Yes, So today's video can be found on softwaretraining.co.za. We make sure and easy to watch problem solving videos. We also have daily updates. Otherwise buy it back into the programme here. Now, this is gonna be our last part that we're covering from the intermediate parts. As you guys can see, we've covered quite a few already. Obviously, some of them are double like these ones where that's what happens if you create inner shape lodging out the shape. But yeah, there's a fair amount of shape here that we have covered. So now for this last part, if we go to flat parts, go to P 58 openness and then zoom in on the little preview here Now, this is quite a simple shapes we should compared to the one we just covered with the triangle we can see here. We've got three values on the right, got a b and s and then, um, semi on the side. So we've got a which sets the width of the shape. So if you think of it as just a basic rectangle, we've got B which sets the height and then we've got s which is gonna set the, uh, tampering for the top and top two corners in a 45 degree angle. So let's just set that I'm gonna make the let's make it worth quite wide. 300. Um, hope I fit in that shape. I think I can swing a bit better. Let's go about 20 see if we're lucky And then the height I'm gonna make 200 and then the corners I'm gonna make about 50. Let's just see what that looks like and leave the name the same reviewed. It looks pretty close to the our little preview. I think we're gonna go manual quantity. One say add Let's see if it fits in our little shape. Oh, that is very close to see if we can make this shape fit in there. Mhm. Okay, I'm gonna zoom in. Yeah, and then, uh, we'll see if we can just put these shapes a little bit more snuggling. I think there's a kind of a threshold of how close things can be For obvious reasons. You don't Over Cut. Okay, let's try this. Now go to the bottom. P 58 at part C. If we have any luck now, here we go. I think I'm quite surprised. Okay. Let your space. Okay. Yeah. So that is it now. Intermediate miniseries. There's unfortunately quite a long series. I would like to, um, show so I like to keep. My mini series is not as long. The advanced miniseries, which we're about to cover, should be quite a bit shorter. I'm hoping so. I think we covered just about all the shapes in the intermediate shape. So once again, these are obviously 3 to 4 shapes our values just as shapes of 3 to 4 values. And then now we're gonna be looking at five and up some of these shapes. I think I've closed 10 values, so it gets quite complicated quite fast, but yeah, otherwise, thanks, guys, for joining me on this many serious and it's all the next miniseries. If we head here to softwaretraining.co.za. Guys will notice. We've got a variety of different Softwares. We do cover, and you can also isolate your search on top of right. If you do not, however, find the training videos you're looking forward. Just simply go here, request a training video filling the mini form. And then we'll do our best to make that for you. But otherwise thanks, guys for watching and cheers.
