FabriCAM Software Intermediate Hexagon Circle Combo (Part 5) Step by Step Video Tutorial

With our next shape we are revisiting one from our basic list, but this time it gets a bit more complex.

From our intermediate flat parts we now going to have a look at the Hexagon with a nice inner clearing.

This video is part of a Mini-Series.
Next video covers Intermediate Flat Part P11.
Previous video covered Intermediate Flat Part P7.

Video Transcript

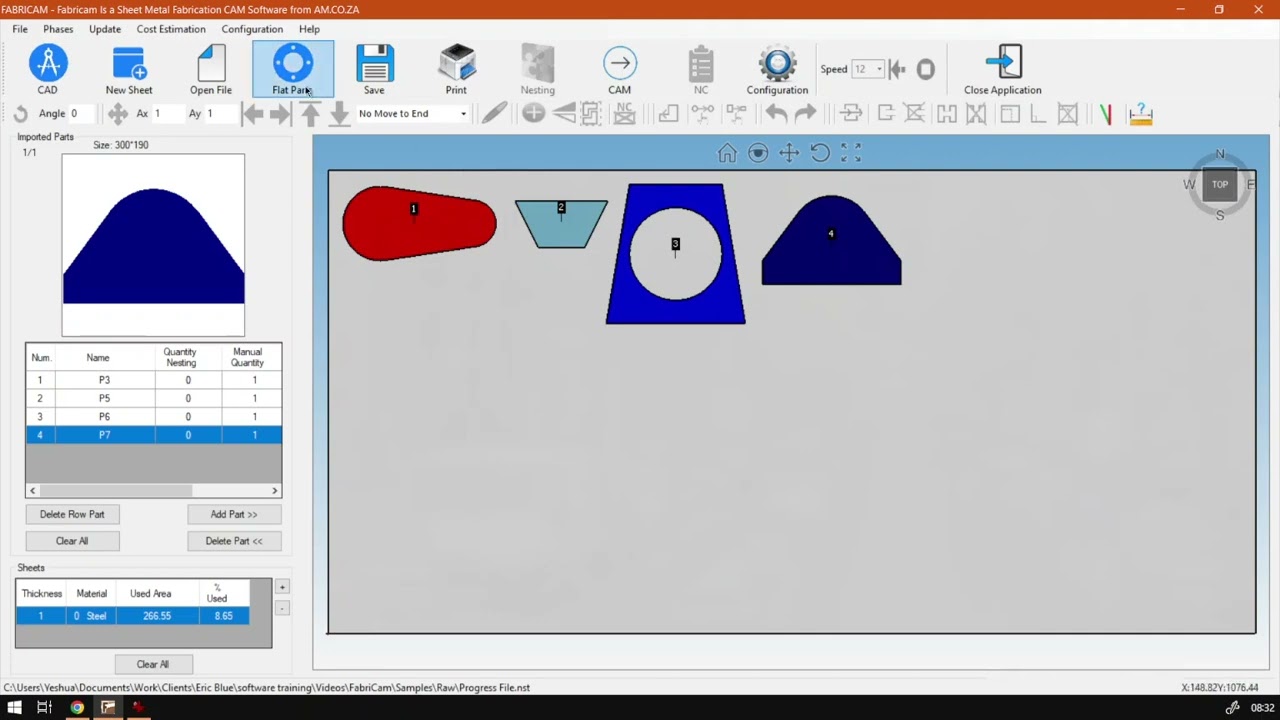

Alright, you guys, in today's video, we're gonna be looking at your part 10 like we found under your flat parts and this will be intermediate parts. But before that, let's have a quick intro first. So today's video can be found on softwaretraining.co.za z. We make sure needed to watch problem solving videos and we also have that update otherwise back in the programme here. So now we are moving on to the fifth intermediate shape. So I would say these intermediate shapes are coming along quite quickly, which is nice. So in order to make this shape, this is gonna be a shape. The base, uh, silhouette or base outside shape is gonna be something we've done before. You guys might recognise it And, uh, yeah, that is the ex gone. So we've got the p tenure if we open it and assuming if you guys you can see now we've got three different diameters or values are said we still have the A still have the are. But now we could d as well now as we can see what the D does or set up a centre ring or opening on the actual shape. So now let's just sit in some values. I'm gonna make this in 300. Let's put the corners. Maybe about 50 the rounding of the corners, and then d I'm gonna make about 200 so leave the name of same click, okay? And now, and our preview, we can see we've got a nice little one. We can maybe make the rounding a little bit less, in my opinion. But that is fine for now. Say one at and now they gave us a green one so we can add this to our canvas. And there you go. We've got to actually go on with the actual ring on the inside of the circle, cut out. And, uh, so just a quick recap. So it is obviously under flat parts p 10. And what makes this one difference is the So we have now a ring where before we only had two values on top. But otherwise that is it on part 10. Should I say a part number 10 before we get to the next one? If we go to softwaretraining.co.za C uh, guys will notice you've got a variety of different Softwares will recover, and you can also isolate your search on the top of right. If you do not, however, find the training videos you're looking forward to simply go. Yeah, request the training video filling the uniform. And then we'll do our best to try and make that for you. But otherwise thanks, guys, for watching and cheers.
